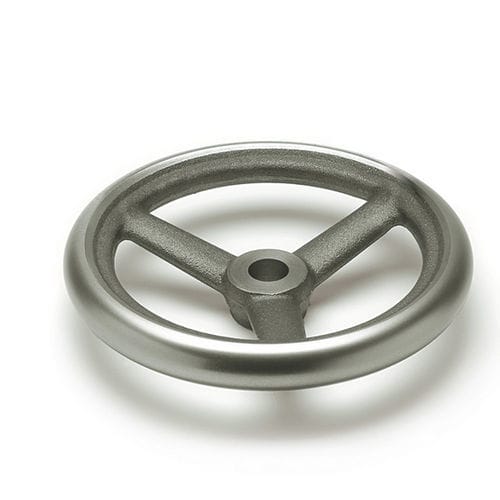

Operating handwheel GN.11401spokedsteelcast iron
Add to favorites
Compare this product
Characteristics
- Function
- operating
- Configuration
- spoked
- Material
- steel, cast iron
- Outside diameter
Min.: 80 mm
(3.15 in)Max.: 250 mm
(9.84 in)
Description
MATERIAL
Cast iron, turned and polished rim.
STANDARD EXECUTIONS
- DIN 950-A: without handle.
- DIN 950-D: with revolving handle DIN 98 (see page 409) zinc-plated steel.
Hole index:
- B: H7 reamed hole.
- K: H7 reamed hole and keyway in compliance with DIN 6885/1
tolerance P9 (see page A-16).
SPECIAL EXECUTIONS ON REQUEST
- H11 square mounting hole (DIN 950-V).
- Cast aluminium handwheels (DIN 950-AL).
- Diameter D = 315, 400, 500 mm.
