Operating handwheel GN 949-A
spokedsteelstainless steel

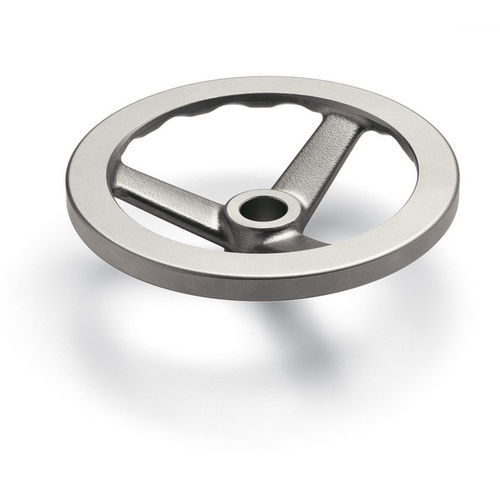

Operating handwheel - GN 949-A - ELESA - spoked / steel / stainless steel
Operating handwheel - GN 949-A - ELESA - spoked / steel / stainless steel
Operating handwheel - GN 949-A - ELESA - spoked / steel / stainless steel - image - 2
Add to favorites
Compare this product
Go to the ELESA website for more information

Characteristics

Function
operating
Configuration
spoked
Material
steel, stainless steel, Duroplast
Outside diameter

Max.: 200 mm
(7.87 in)

Min.: 100 mm
(3.94 in)

Description

MATERIAL Cast stainless steel, turned rim, sandblasted matte surface. STANDARD EXECUTIONS - GN 949-A: without handle. - GN 949-D: with revolving handle in phenolic based (PF) Duroplast, black colour, glossy finish. AISI 304 stainless steel pin. Hole index: - B: H8 reamed hole. - K: H8 reamed hole and keyway in compliance with DIN 6885/1 tolerance P9 (see page A-16).
