Heat - for all gases up to 650°C
And safety- for operation in EX hazardous areas and for high pressure up to 500 bar. Our solution - tailored exactly to your needs
Advantages of ELMESS gas preheaters:
designed according to customers's individual requirements
safe and reliable operation
simple installation
low service requirement
long lifetime

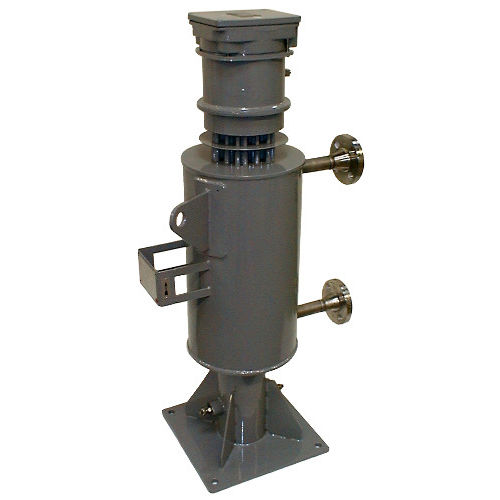

Block Type Gas Heater
The medium is heated indirectly inside a cotube coil. The tube coil is cast in an aluminum block along with the electric heating bundle, protected by a steel or stainless steel enclosure.
The tube coil as pressure bearing element is calculated, manufactured and documented in compliance with PED, ASME or other codes.
Design, connections (1-2“), output and dimensions as required on a case by case basis
Special advantages of ELMESS block type gas heaters
high operation pressure up to 500 barg
operating temperature up to ~400°C
safe and reliable temperature control
best for small temperature gap between surface and outlet temperature
heating of aggressive media
