Manual copy router AS 70/44
manually-controlled1-spindle1-spindle

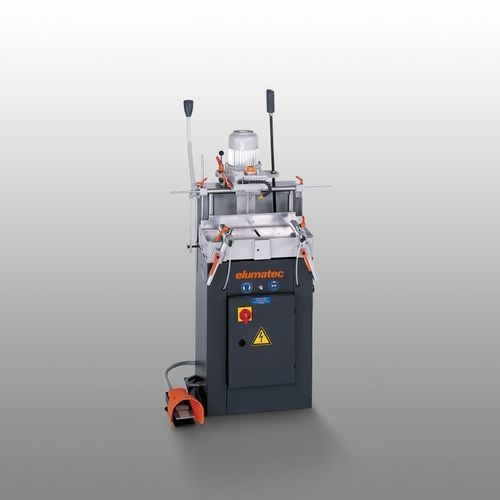

Manual copy router - AS 70/44 - ELUMATEC - manually-controlled / 1-spindle / 1-spindle
Manual copy router - AS 70/44 - ELUMATEC - manually-controlled / 1-spindle / 1-spindle
Manual copy router - AS 70/44 - ELUMATEC - manually-controlled / 1-spindle / 1-spindle - image - 2
Manual copy router - AS 70/44 - ELUMATEC - manually-controlled / 1-spindle / 1-spindle - image - 3
Add to favorites
Compare this product

Characteristics

Control type
manually-controlled, manual
Number of axes
1-spindle
Number of spindles
1-spindle
Treated material
for PVC, for aluminum
Other characteristics
with pneumatic clamping
X travel

110 mm
(4.33 in)

Description

Overview
  • Copy router for 1:1 transfer of cutting patterns to aluminium and PVC profiles
  • Precision routing with simple two-lever manual operation and fast setup in a few steps
  • Pneumatic material clamping and manual tracer point with three positions for different cutter diameters
  • Pulsed coolant/spray system to control cutting fluid delivery
  • Suitable for template copying and for rectangular cuts using stops


Options
  • Copy templates
  • Collets and cutting tool holders
  • Stands and guide bars
  • Workpiece supports and stops
  • Material clamping units (variants)
  • Cutting tools and accessories
  • High-performance cutting fluid


Related models / Variants
  • 1-SPINDLE COPY ROUTER AS 70/45: See AS 70/44, however:
    • Speed switching from 12,000 rpm to 6,000 rpm for cutting thin-walled steel profiles
  • 1-SPINDLE COPY ROUTER AS 70/50: See AS 70/44, however:
    • Table-top unit
    • Manual material clamping unit
    • No pulsed coolant system
    • Length 720 mm, depth 650 mm, height 960 mm, weight 75 kg


Technical specifications
  • Horizontal cutting range using a stop: 230 x 90 mm
  • Horizontal cutting range using a copy template: 230 x 90 mm
  • Spindle speed: 12,000 rpm
  • Clamping range for profiles: 180 x 130 mm
  • Travel (stroke): 110 mm
  • Power supply: 230/400 V, 3~, 50 Hz
  • Power output: 0.74 kW
  • Compressed air supply: 7 bar
  • Air consumption per working cycle: 12 l without spraying, 24 l with spraying
  • Dimensions (L x D x H): 720 x 650 x 1,440 mm
  • Weight: 120 kg
