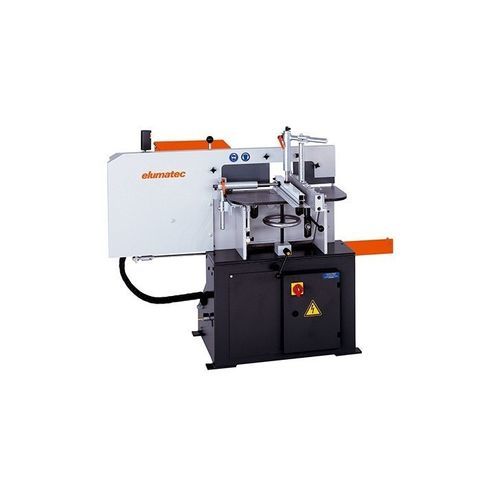

1-axis milling machine AF 222/02
verticalhorizontalfor PVC

1-axis milling machine - AF 222/02 - ELUMATEC - vertical / horizontal / for PVC
1-axis milling machine - AF 222/02 - ELUMATEC - vertical / horizontal / for PVC
1-axis milling machine - AF 222/02 - ELUMATEC - vertical / horizontal / for PVC - image - 2
1-axis milling machine - AF 222/02 - ELUMATEC - vertical / horizontal / for PVC - image - 3
1-axis milling machine - AF 222/02 - ELUMATEC - vertical / horizontal / for PVC - image - 4
1-axis milling machine - AF 222/02 - ELUMATEC - vertical / horizontal / for PVC - image - 5
1-axis milling machine - AF 222/02 - ELUMATEC - vertical / horizontal / for PVC - image - 6
1-axis milling machine - AF 222/02 - ELUMATEC - vertical / horizontal / for PVC - image - 7
Add to favorites
Compare this product

Characteristics

Number of axes
1-axis
Spindle orientation
vertical, horizontal
Machined material
for PVC, for aluminum
Applications
industrial, for profiles, for aluminum profiles, for door
Other characteristics
automatic, precision, with turret, high-performance, with position indicator, with pneumatic clamping
Associated function
drilling, cutting, notching, profiling
X travel

550 mm
(21.65 in)

Power

2 kW
(2.72 hp)

Spindle speed

2,800 rpm
(17,592.919 rad.min-1)

Description

Product overview
  • For machining transoms and door profiles in aluminium or PVC
  • Manual feed of the routing unit for controlled operation
  • Large cutting range: up to 400 mm cutting length
  • Continuously adjustable table height for precise setup
  • Accepts tool diameters up to 280 mm (cutter bore 40 mm)
  • Material stop pivotable ±60°; notching up to 30° left/right; positive stop at 90° with index pin
  • Two mounting positions for the material stop for flexible setup
  • Quick tool change system and Spindle lock for fast, safe tool changes
  • Precision recirculating ball guides for smooth, low-wear operation
  • Horizontal and vertical pneumatic material clamping for secure fixing
  • Depth stop with four selectable notching depths
  • Integrated connecting piece with extractor hose for dust extraction connection
  • Pulsed coolant/spray system for controlled lubrication
  • Automatic safety curtain for operator protection


Options
  • Extraction system
  • 4-fold turret stop for table height
  • Digital display
  • Cutting tools
  • High-performance cutting fluid


Technical specifications
  • Max. cutting tool diameter: 280 mm
  • Cutter bore: 40 mm
  • Max. profile height: 165 mm
  • Cutting height: 145 mm
  • Cutting depth: 110 mm
  • Cutting length: 400 mm
  • Spindle speed: 2,800 rpm
  • Travel: 550 mm
  • Motor power: 2.5 kW at 400 V / 50 Hz
  • Compressed air supply: 7 bar
  • Power output: 2 kW
  • Air consumption: 10 l per working cycle, 20 l with minimum-volume lubrication
  • Dimensions (L×D×H): 1,540 × 905 × 1,000 mm
  • Weight: 248 kg
