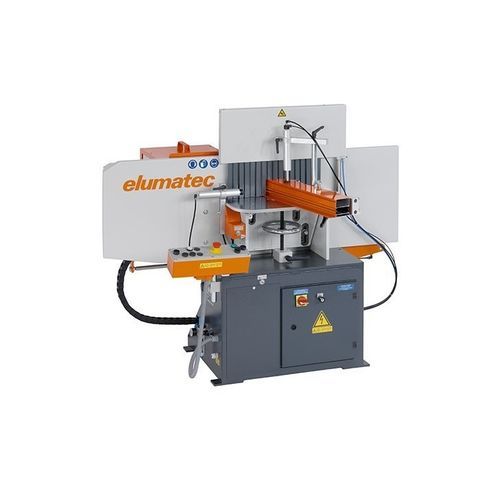

Automatic router AF 223/01single-spindlefor plasticsfor aluminum
Add to favorites
Compare this product
Characteristics
- Control type
- automatic
- Number of spindles
- single-spindle
- Treated material
- for aluminum, for plastics
- Applications
- heavy-duty
- Other characteristics
- with tool changer, pneumatic, with pneumatic clamping
- X travel
550 mm
(21.65 in)- Y travel
110 mm
(4.33 in)- Z travel
Max.: 110 mm
(4.33 in)145 mm
(5.71 in)Min.: 110 mm
(4.33 in)
Description
Product overview
Options
Caractéristiques / spécifications techniques
- For machining transoms and door profiles made of aluminium or plastic
- Automatic work sequence
- Large cutting range of up to 400 mm
- Continuously adjustable table height
- Tool diameters of up to 280 mm can be used
- The material stop can be pivoted up to 60° to the left and right; notching up to 30° (acute angles, left and right); detent at 90° with index pin
- Two installation positions for the material stop
- With quick tool change system and "Spindle Lock" for easy tool changing
- Precise, smooth-action and low-wear recirculating ball guides
- Horizontal and vertical pneumatic material clamping provides flexibility
- Depth stop for four different notching depths
- Pulsed coolant system
- Automatic safety curtain
Options
- Extraction system
- 4-fold turret stop for table height
- Digital display
- Cutting tools
- High performance cutting fluid
Caractéristiques / spécifications techniques
- Cutting tool diameter max. 280 mm
- Cutter bore 40 mm
- Max. profile height 200 mm
- Cutting height 145 mm
- Cutting depth 110 mm
- Cutting length 400 mm
- Spindle speed 2,800 rpm
- Travel 550 mm
- 2.5 kW of power at 400 V / 50 Hz
- Compressed air supply 7 bar
- Power output 2 kW
- Air consumption per working cycle 15 l without spraying, 25 l with spraying
- Length 1,540 mm
- Depth 905 mm
- Height 1,000 mm
- Weight 280 kg
