Manual copy router KF 78/23
2-axistwo-spindlefor PVC

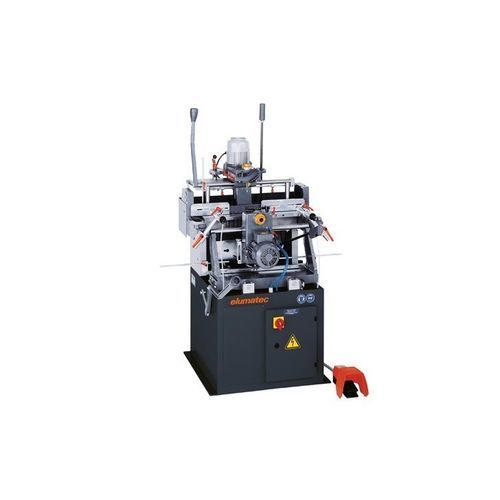

Manual copy router - KF 78/23 - ELUMATEC - 2-axis / two-spindle / for PVC
Manual copy router - KF 78/23 - ELUMATEC - 2-axis / two-spindle / for PVC
Manual copy router - KF 78/23 - ELUMATEC - 2-axis / two-spindle / for PVC - image - 2
Manual copy router - KF 78/23 - ELUMATEC - 2-axis / two-spindle / for PVC - image - 3
Manual copy router - KF 78/23 - ELUMATEC - 2-axis / two-spindle / for PVC - image - 4
Manual copy router - KF 78/23 - ELUMATEC - 2-axis / two-spindle / for PVC - image - 5
Manual copy router - KF 78/23 - ELUMATEC - 2-axis / two-spindle / for PVC - image - 6
Add to favorites
Compare this product

Characteristics

Control type
manual
Number of axes
2-axis
Number of spindles
two-spindle
Treated material
for PVC, for aluminum
Other characteristics
pneumatic
X travel

80 mm
(3.15 in)

Y travel

120 mm
(4.72 in)

Description

Description
  • Routing of lock cylinders and handle holes in aluminium and PVC profiles with thickness up to 70 mm
  • Two independent copy-routing units enabling routing in two planes (vertical and horizontal)
  • 1:1 copy routing using both router spindles for precise reproduction
  • Routing performed using mechanical stops or copy templates
  • Plastic-coated table to protect profile surfaces during machining
  • Horizontal pneumatic clamping for secure workpiece fixation
  • Pulsed/dosed coolant/spray system for controlled lubrication and chip removal


Options
  • Copy templates
  • Template blanks
  • Collets and clamping chucks
  • Stands and guide bars
  • Workpiece supports and stops
  • Cutter tools and inserts
  • High-performance cutting fluid


Technical specifications
  • Horizontal cutting range
    • With stop: 300 x 100 mm
    • With copy template: 270 x 70 mm
    • Travel: 80 mm
  • Vertical cutting range
    • With stop: 290 x 100 mm
    • With copy template: 230 x 70 mm
    • Travel: 120 mm
  • Spindle speed: 12,000 rpm
  • Clamping range for profiles: 150 x 150 mm
  • Power supply: 230/400 V, 3~, 50 Hz
  • Power output: 0.74 kW
  • Compressed air supply: 7 bar
  • Air consumption per working cycle: 12 l without spraying, 24 l with spraying
  • Dimensions (L x D x H): 940 x 1,150 x 1,600 mm
  • Weight: 260 kg
  • Model: KF 78/23 — 2-spindle copy router
