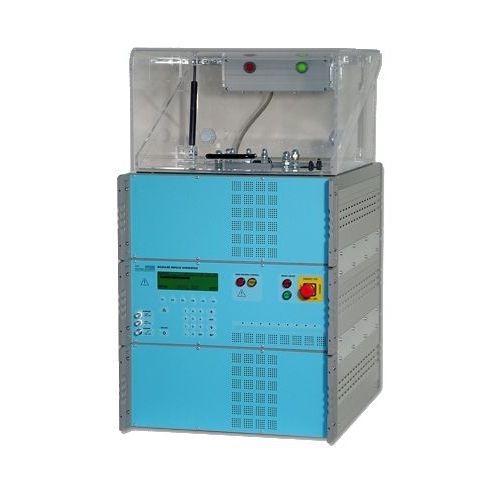

Current impulse generator MIG0624T-K12for telecom applications
Add to favorites
Compare this product
Characteristics
- Type
- current impulse
- Applications
- for telecom applications
Description
Designed for testing telecom surge protection devices according to ITU-T K12. The generator has two indepedent impulse outputs which allow testing of two and three terminal protection devices such as gas discharge tubes (GDT). The generator can be configured for two terminal devices or with the outputs in parallel to increase the current impulse for two terminal devices. Impulses avaiable from MIG0624T-K12 are: 10/1000µs, 2x 130A, 100/1000µs, 2x 1000A, 8/20µs, 2x 10000A, 40/350µs (10/350µs), 2x 4000A.
Catalogs
Telecom Test System
16 Pages
