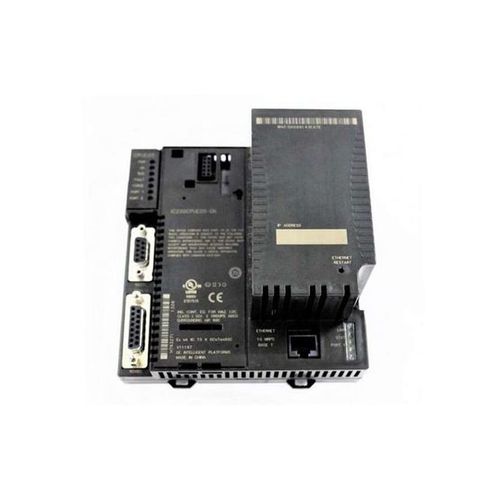

DIN rail programmable automation controller VersaMax CPUE05

with integrated I/Oanalog inputsEthernet

Versatile controller designed to be easy to use and supports a wide range of I/O expansion modules and communications options. Features -Supports up to 64 modules with up to 2048 I/O points -Can be either autoconfigured or configured from a programmer using configuration software -64KB of configurable memory for the application program, hardware configuration, registers, analog inputs, and analog outputs -Programming in Ladder Diagram and Instruction List -Non-volatile flash memory for program storage -Battery backup for program, data, and time of day clock -Run/Stop switch -Floating point (real) data functions -Embedded RS-232, RS-485, and Ethernet communications -Supports EZ Program Store device -70mm height when mounted on DIN rail with power supply Specifications Part Number IC200CPUE05 Dimensions (W x H x D in mm) 126 x 128 x 69.1 Program Storage System flash, battery-backed RAM Power Requirements 5V uses 220mA, 3.3V uses 570mA Floating Point yes Boolean Execution Speed 0.8 ms/K (typical) Realtime Clock Accuracy (for timer functions) 100ppm (0.01%) or +/- 9sec/day Time of Day Clock Accuracy 100ppm at full temperature range Embedded Communications RS-232, RS-485, Ethernet Configurable Memory 64K bytes maximum Ethernet Data Rate 10Mbps (half- or full-duplex) Ethernet Port RJ-45, UTP Number of SRTP Server Connections 8 Number of Ethernet Global Data (EGD) Configuration-Based Exchanges 32 EGD Exchange Limits 100 data ranges per exchange, 1400 bytes of data per exchange EGD Time Synchronization NTP
