Pull handle 11-56 series

equipmentdoorglass-fiber reinforced polyamide

Product name

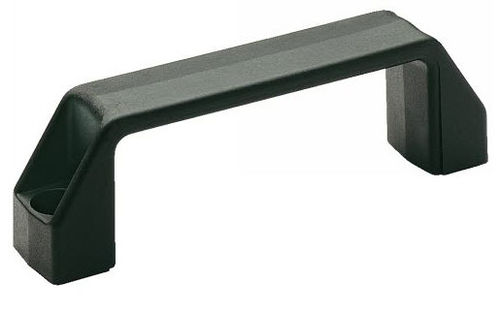

Cabinet U-handle - bored, technopolymer

Definition
A U-handle is a mechanical component used to operate, lift or move objects such as doors, hatches and industrial equipment.

Material

• Technopolymer (glass-fiber reinforced polyamide), black, matte finish — models 11-560, 11-562, 11-563.
• Technopolymer (polyamide) certified self-extinguishing UL 94 V-0 — model 11-565.
• Technopolymer (polyamide) antistatic (ESD) — model 11-566.
• Technopolymer based on polypropylene reinforced with glass fiber — model 11-561.

Versions
This U-handle is available in several versions to suit different mounting and environmental requirements:

• Polyamide base with fixation via socket-head cap screws (CHC), countersunk screws or hex-head screws.
• Polyamide UL 94 V-0 self-extinguishing version with fixation via socket-head cap screws (CHC).
• Polyamide antistatic (ESD) version with fixation via socket-head cap screws (CHC).
• Polypropylene (glass-fiber reinforced) version with fixation via socket-head cap screws (CHC).

Dimensional range
Length l2 available from 93.5 mm to 235 mm with corresponding height h1 from 38 mm to 54 mm.

Use and performance

• Designed for manoeuvring and handling doors, hatches and various objects in industrial installations.
• Polyamide versions withstand temperatures from -30°C to +150°C.
• Polypropylene references (starting with 11-561) are suitable from 0°C to +100°C.
• Technopolymer construction ensures low weight combined with good strength and long service life.
• Handles offer controlled flexibility under heavy loads to improve grip comfort during handling.
• Multiple mounting options and broad dimensional range allow fixation on heavy or light structures.

On request
Other colours available for model 11-560: RAL 3000 (Red), RAL 2004 (Orange), RAL 7031 (Grey).

Documents available

• Product data sheet: Poignée étrier technopolymère alésée 11-56 (Pdf)
• Plastic materials - Technical sheet
• U-handles - Technical sheet

Technical specifications

• Series / model: 11-56
• Denomination: Cabinet U-handle, bored
• Materials: glass-fiber reinforced polyamide, polyamide UL 94 V-0, polyamide ESD, glass-fiber reinforced polypropylene
• Fixation options: socket-head cap screws (CHC), countersunk screws, hex-head screws
• Temperature range: polyamide -30°C to +150°C; polypropylene 0°C to +100°C
• Length range (l2): 93.5 mm to 235 mm
• Height range (h1): 38 mm to 54 mm
• Available finishes: standard black matte; specific RAL colours on request for model 11-560
• Ordering example: 11-560-94
• Certificates / features: UL 94 V-0 (11-565), ESD antistatic (11-566)
