Pull handle 11-51 series

equipmentdooraluminum

Product

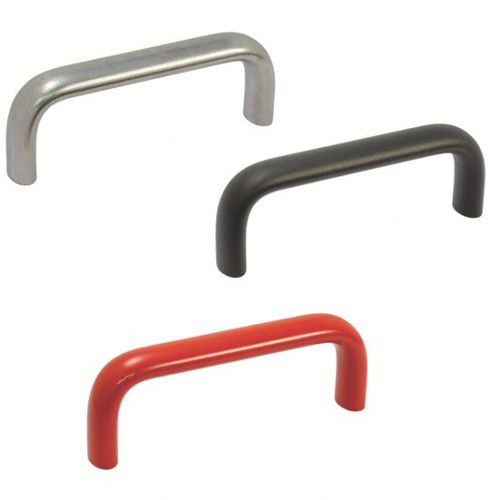

• U-shaped cabinet handle in aluminium for manoeuvring, lifting or moving objects, doors and hatches.

Definition
A U handle is a mechanical component used to manoeuvre, lift or move objects, doors or hatches. The ergonomic oval shape supports a natural grip.

Material
- Manufactured from extruded aluminium profile (AlMgSi0,5 F13). Finishes: matt, coated (black RAL 9005, red RAL 3000, silver grey RAL 9006) or anodised.

Versions / Finishes
- Available finishes: matt, anodised, coated black, coated red, coated silver grey.

Dimensional range and variants
- Thread options (d1): M6 or M8. Lengths (l2) available: 100, 112, 117, 120, 125, 128, 160, 179, 180, 192, 200, 235, 300, 400, 500 mm. Body width/section (l1): 20 mm or 26 mm. Other dimensions (h1, h2, r1, l3) depend on reference.

Application
- For mounting on installations requiring manoeuvring or opening of doors and hatches. Wide length range adapts to many industrial assemblies. Oval shape ensures a natural and safe grip. Open design without closed angles facilitates cleaning. Aluminium construction yields a lightweight, durable handle.

On request
- Non-standard coating colours.
- Custom dimensions.

Files
- Technical datasheets and product sheets available in PDF.

Example order / reference
Reference example: 11-511-20-100 (other variants available by finish and length).

Compliance
Compliant with standards GN 565 / GN 564.

Characteristics / Technical specifications

• Material: extruded aluminium profile AlMgSi0,5 F13.
• Finishes: matt, anodised, coated black (RAL 9005), coated red (RAL 3000), coated silver grey (RAL 9006).
• Thread options (d1): M6 or M8.
• Body width / section (l1): 20 mm or 26 mm.
• Lengths l2 available: 100, 112, 117, 120, 125, 128, 160, 179, 180, 192, 200, 235, 300, 400, 500 mm.
• Thickness / l3: 13 mm or 17 mm.
• Heights h1 observed: 49, 51, 55, 57 mm.
• h2 min observed: 10 mm or 12 mm.
• Radii r1 observed: 13 mm or 17 mm.
• Examples of internal references: 11-511-20-100, 11-511-20-112, 11-511-20-117, etc.
• Ergonomics: oval shape for natural and safe grip.
