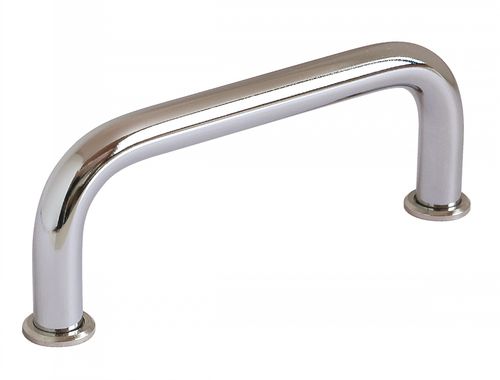

Pull handle 11-52 series

tubularpullingdoor

Definition
A thin U-handle (cabinet U-handle) designed to operate, lift or move objects such as doors, hatches and drawers. The U shape provides good grip and safe handling.

Materials

• Chromed steel
• Burnished steel
• Black coated steel (RAL 9005)
• Stainless steel: AISI 303 (mat or polished), AISI 304 (mat or polished), AISI 316L

Delivery & mounting details
Thin U-handles with diameters d1 = 8 mm and d1 = 10 mm are supplied with two support washers in zinc plated steel or stainless steel to ensure stability during use.

Available versions

• Steel: chromed, burnished or black coated
• Stainless steel: AISI 303, AISI 304 (mat or polished), AISI 316L

Dimensional range
Fixing threads available M4 to M6 and center distances (l1) from 55 mm to 300 mm depending on reference.

Applications / Use
Suitable for mounting on furniture doors, drawers, hatches and other objects requiring manual handling. Small diameter versions are delivered with two support washers to improve stability and mounting reliability.

Notes
Corresponds to GN 425 standard.

Technical specifications

• Series / model identifier: 11-52
• Handle type: Cabinet U-handle, thin
• Materials: Steel (chromed, burnished, black coated), Stainless steel (AISI 303, AISI 304, AISI 316L)
• Diameters (d1): 8, 10, 12, 16 mm
• Fixing thread options (d2): M4, M5, M6
• Available center distances (l1): 55 to 300 mm (various steps per reference)
• Other dimensions (h1, h2, r1): various sizes per reference
• Washers: supplied for d1 = 8 and 10 (zinc plated steel or stainless steel)
• Stock / lead time: depends on variant (available or 7 days)
• Standard compliance: corresponds to GN 425
