Cylindrical nut 94-86 series

PAtechnopolymerglass-fiber reinforced polyamide

Product overview
Expandable nut in technopolymer designed for fastening components onto aluminium profiles. Series 94-86, Form B.

Material

• Technopolymer based on polyamide (PA), glass-fiber reinforced, black.

Use

• Enables threaded fastening into aluminium profile grooves (10 mm groove) for assembly of industrial frames, fixtures and accessories.

Photos

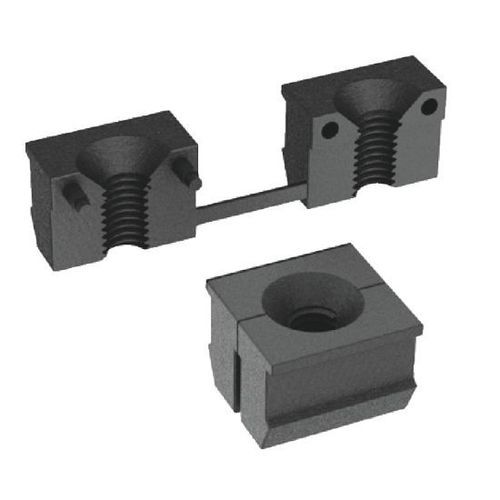

• Main product photo and an application example are available. Product images include product name and model.

Example of order

• Example: 94-860-10-4

Available variants

• Ref. 94-860-10-4 — Form: B — Groove: 10 mm — l1: 10 mm — l2: 11.6 mm — l3: 12 mm — Thread d1: M4 — h1: 9 mm — h2: 4.2 mm — h3: 1.2 mm
• Ref. 94-860-10-5 — Form: B — Groove: 10 mm — l1: 10 mm — l2: 11.6 mm — l3: 12 mm — Thread d1: M5 — h1: 9 mm — h2: 4.2 mm — h3: 1.2 mm
• Ref. 94-860-10-6 — Form: B — Groove: 10 mm — l1: 10 mm — l2: 11.6 mm — l3: 12 mm — Thread d1: M6 — h1: 9 mm — h2: 4.2 mm — h3: 1.2 mm

Stock & price info

• Availability for listed references: typically 4 to 8 days (supplier lead time).
• Price on page: NC (not communicated).

Technical specifications

• Series: 94-86
• Commercial name: Expandable nut
• Material: Technopolymer (polyamide PA) reinforced with glass fiber, black
• Form: B
• Intended use: Fastening on aluminium profiles (10 mm groove)
• Available thread options (d1): M4, M5, M6
• Dimensional data (examples): l1 = 10 mm, l2 = 11.6 mm, l3 = 12 mm, h1 = 9 mm, h2 = 4.2 mm, h3 = 1.2 mm
• Availability: typically 4 to 8 days (subject to supplier availability)
• Price on page: NC (not communicated)
