Aluminum support arm system 94-1500-8

steel

Product

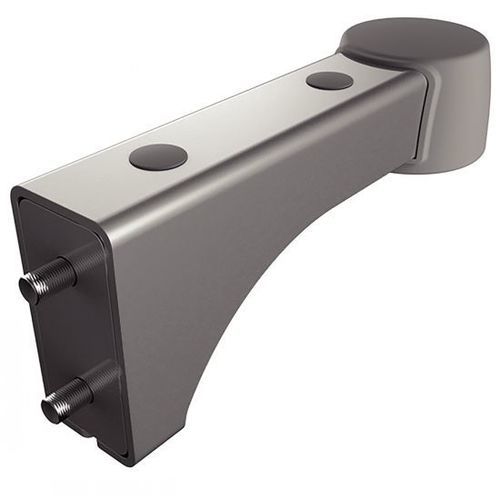

Support arm for swivel caster, model 94-150. Provides improved stability and impact protection; slight curvature allows swivel casters to rotate 360°.

Material

• Support arm in steel, pelliculated aluminium-coloured finish.
• 1 bumper in TPE plastic, 70 Shore A, grey (RAL 7042).
• 2 screws ISO 7380 - M8x16, zinc-plated steel.
• 1 screw DIN 7991 - M12x25, zinc-plated steel.
• 2 plastic caps, grey (RAL 7042).

Usage
The support arm improves stability and protects against impacts for swivel casters; enables 360° rotation of the casters.

Mounting
The support arm can be mounted laterally, transversely or front-facing. For front-facing mounting, the profile central hole must be tapped M8.

Order example
Reference: 94-1500-8

Availability / Price
Availability (reference 94-1500-8): 4 to 8 days.
Price shown on site: NC

Technical characteristics / specifications

• Series / Model: 94-150
• Function: Support arm for swivel caster (360° swivel)
• Material: Steel, pelliculated aluminium-coloured finish
• Bumper: 1 x TPE 70 Shore A, grey (RAL 7042)
• Fittings provided: 2 x ISO 7380 M8x16 (zinc-plated steel), 1 x DIN 7991 M12x25 (zinc-plated steel)
• Caps: 2 plastic caps, grey (RAL 7042)
• Mounting: lateral, transverse or front-facing (M8 tapping required for front-facing)
• Example supplier reference: 94-1500-8
• Indicated availability: 4 to 8 days
• Price indicated: NC
• Shape: I
• Slot: 8
• d1 (mm): 64
• d2: M12
• d3: M8
• l1 (mm): 202
• l2 (mm): 40
• l3 (mm): 170
• l4 (mm): 50
• l5 (mm): 35
• l6 (mm): 185
• l7 (mm): 12
• h1 (mm): 80
• h2 (mm): 45
• h3 (mm): 32
• h4 (mm): 28
• h5 (mm): 40
• h6 (mm): 20
