Aluminum profile fixing element 94-200 series

for profilessteelstainless steel

Definition

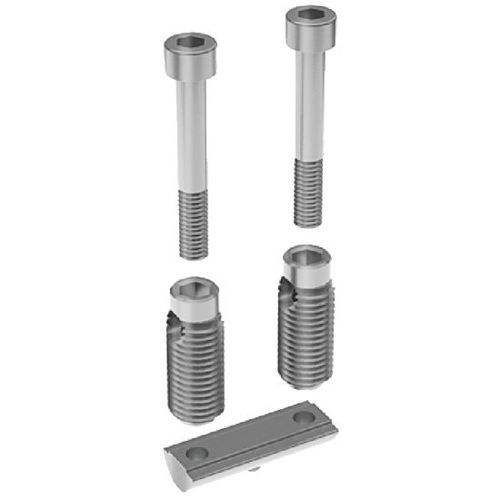

The double automatic fastening (series 94-200) is an assembly accessory composed of two self-tapping sleeves, two hex socket head screws and a double connector bar, designed to join two aluminium profiles at a 90° angle quickly and securely.

Material
- Zinc-plated steel.

Versions

• Double version: 90° connection for I-shaped aluminium profiles.
• Single version available (steel or stainless steel) for 90° connections of B- or I-shaped profiles.
• End-to-end connection variant available.

Dimensional range
- Available for profiles with 8 mm slot.

Application
- Provides a strong, quick 90° connection between two aluminium profiles.
- No pre-drilling required thanks to the self-tapping threads.

Assembly

• Screw the self-tapping sleeves into two opposite slots of the first profile from the end that will bear against the second profile.
• Slide the double connector bar into the slot of the second profile at the intended connection point.
• Insert the screws into the sleeves and tighten onto the connector bar to assemble the two profiles.

Other versions offered
- Steel or stainless steel versions available for certain configurations.
- Automatic connectors for end-to-end joints available.

Example order
Order example: Reference 94-2003-8-40

Characteristics / technical specifications

• Model / series: 94-200
• Profile shape: I (double)
• Slot size: 8 mm
• Material: Zinc-plated steel
• Fixing elements: 2 self-tapping sleeves + 2 hex socket head screws + double connector bar
• Assembly: without pre-drilling (self-tapping)
• Available variants (examples):
• 94-2003-8-40 — Standard — Profile 40 mm — d1 = 12 mm — l1 = 31 mm — l2 = 26.4 mm — s1 = 5 mm — s2 = 6 mm — Screw M6x40 — Lead time: 4–8 days
• 94-2003-8-80 — Standard — Profile 80 mm — d1 = 12 mm — l1 = 31 mm — l2 = 66.4 mm — s1 = 5 mm — s2 = 6 mm — Screw M6x40 — Lead time: 4–8 days
• 94-2004-8-40 — ESD — Profile 40 mm — d1 = 12 mm — l1 = 31 mm — l2 = 26.4 mm — s1 = 5 mm — s2 = 6 mm — Screw M6x40 — Lead time: 4–8 days
• 94-2004-8-80 — ESD — Profile 80 mm — d1 = 12 mm — l1 = 31 mm — l2 = 66.4 mm — s1 = 5 mm — s2 = 6 mm — Screw M6x40 — Lead time: 4–8 days
