Aluminum profile fixing element 94-200 series

zinc-plated steeldoubleright-angle

Definition

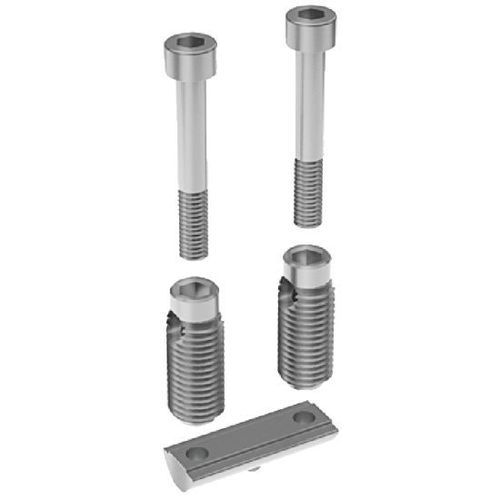

The double automatic fixing is an accessory composed of two self-tapping sleeves, two socket-head cap screws and a double bar, designed to assemble two aluminium profiles at a right angle quickly and securely.

Material

• Zinc-plated steel.

Versions

• Double version: for 90° connection of I-shaped aluminium profiles.
• Also available: single version (steel or stainless steel) for 90° connection of B or I profiles, and butt-join automatic connector.

Dimensional range
Compatible with profiles featuring an 8 mm groove.

Usage

• Allows fast and secure 90° assembly of two aluminium profiles.
• No preparation or pre-drilling required thanks to the self-tapping thread of the sleeves.

Assembly

• Screw the self-tapping sleeves into two opposite grooves of the first profile from the end that will bear on the second profile.
• Slide the double bar into the groove of the second profile at the connection point.
• Insert the screws into the sleeves and tighten onto the double bar to assemble the two profiles.

Other available versions

• Single automatic fixing in steel or stainless steel (series 94-200).
• Automatic butt connector in steel or stainless steel (series 94-202).

Order example
EXAMPLE OF ORDER: 94-2003-8-40

Technical specifications

• Series: 94-200
• Commercial name: Double automatic fixing
• Function: 90° assembly of aluminium profiles (I shape)
• Material: Zinc-plated steel
• Compatible groove: 8 mm
• Example references: 94-2003-8-40; 94-2003-8-80; 94-2004-8-40; 94-2004-8-80
• Compatible profile shape: I (standard / ESD versions according to reference)
• Profile size (mm): 40 or 80 (depending on reference)
• d1 (mm): 12 (depending on reference)
• l1 (mm): 31 (depending on reference)
• l2 (mm): 26.4 or 66.4 (depending on reference)
• s1 (mm): 5
• s2 (mm): 6
• Screws supplied: M6x40
• Typical use: rapid assembly of aluminium framework without mechanical preparation.
• Variants and example attributes:
  • 94-2003-8-40 — Standard, I shape, groove 8, profile 40, d1 = 12 mm, l1 = 31 mm, l2 = 26.4 mm, s1 = 5 mm, s2 = 6 mm, Screws M6x40.
  • 94-2003-8-80 — Standard, I shape, groove 8, profile 80, d1 = 12 mm, l1 = 31 mm, l2 = 66.4 mm, s1 = 5 mm, s2 = 6 mm, Screws M6x40.
  • 94-2004-8-40 — ESD, I shape, groove 8, profile 40, d1 = 12 mm, l1 = 31 mm, l2 = 26.4 mm, s1 = 5 mm, s2 = 6 mm, Screws M6x40.
  • 94-2004-8-80 — ESD, I shape, groove 8, profile 80, d1 = 12 mm, l1 = 31 mm, l2 = 66.4 mm, s1 = 5 mm, s2 = 6 mm, Screws M6x40.
