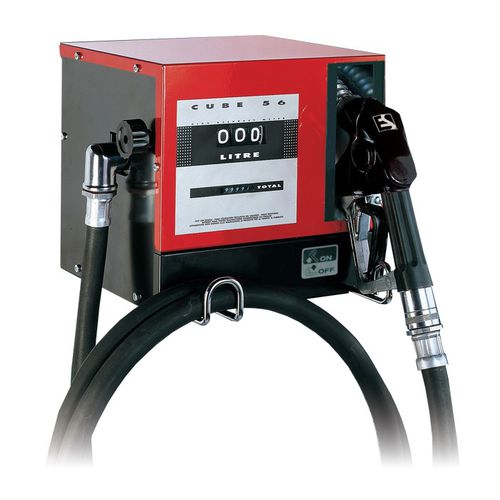

Automatic dispenser CUBE series

continuousdieselcompact

CUBE pumps have been developed for the distribution of Diesel fuel in non-commercial uses. With CUBE fuel pumps, vehicles can be refuelled quickly and safely, with various options for measuring and recording the quantities dispensed. The flow-meters mounted on CUBE pumps have sturdy mechanical readout systems whose reliability and easiness to use have been proved by time. Simple and versatile, CUBE pumps can also be installed on drums, thanks to their 2” quick couplings. Performance Specifications: • - Flow-rate (max): up to 56 l/min (Cube 50) and 70 l/min (Cube 70). • - Continuous operation at 230 V. • - Noise level: below 70 dB. • - Precision of flow-meter: ±1%. • - Speed: 2800 rpm • - Power: 360 W (Cube 50) and 550 W (Cube 70). Technical Features: • - Self-supporting stamped-plate structure, treated against corrosion and paint-finished, ready to install. • - Self-priming vane pump, fitted with bypass valve, mounted on antivibration supports. Mechanical seal. • - Self-ventilated enclosed motor (IP 55), single-phase versions provided with heat protection. • - Pump model: Panter 56 (Cube 50) and Panter 72 (Cube 70). • - Intake filter for pump protection. • - Nutating-disk meter with mechanical readout system. • - Meter model: K33 • - Automatic pump nozzle complete with flexible hose and swivel connection. • - In-built nozzle-holder provided with pump start/stop lever.
