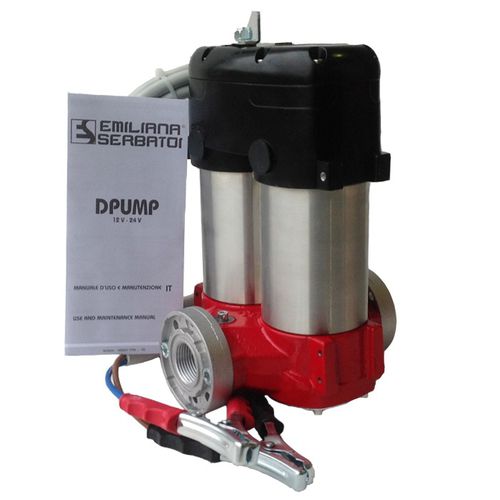

Rotary vane pump DEVIL

fuelDCself-priming

The DEVIL DPUMP model: Displacement, self-priming, rotary electric vane pumps for transferring diesel fuel, characterized by high flow rates. All pumps are equipped with by-pass valve. Powerful, dependable and economical, they are available in 12 and 24-volt versions. Thanks to their compact size, ease of installation, dependability and safety, these pumps are used as the primary system on earth-moving machinery and on mobile fuel pumps on vehicles or in construction yards. Technical specifications • - Cast iron pump body finished with anti-corrosion paint. • - Vane pump with sintered steel rotor and acetal resin vanes. • - By-pass valve incorporated in the pump body. • - Direct current brush motor with permanent magnet stator. • - Motor protection grade IP55. • - Used in intermittent service with 30-minute work cycles. • - Pump attachment support bracket. • - Integrated on/off switch. • - Flanged 1" connectors. • - Available with power cables, incorporated fuses and pincers for connection to terminal strips. Performances: • - Flow rate: 76-82 l/min. • - Speed: 2000 rpm. • - Duty cycle: 30 min. • - Current (max): 44 Amp (12V version) and 22,5 Amp (24V version).
