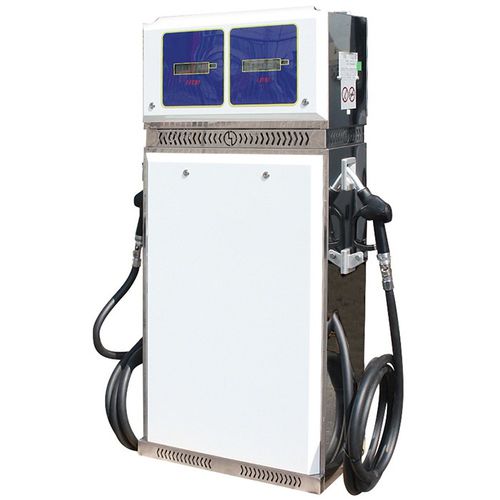

Fuel dispenser FIMAC Mid

stainless steelaluminum

Fuel Dispenser FIMAC, MID certified, for the supply of Diesel + Gasoline or Diesel + Diesel, approved for commercial use (resale of fuel) and approved for classes C fuel. Features: • - Nr. 2 FIMAC vane pumps, with built-in degasser (only for Gasoline pump), with a nominal flow-rate range from 40 to 130 l / min, ATEX approved; • - Nr. 2 Eexd electric motors, power 1.0 HP 380 V, Atex approved; • - Nr. 2 FIMAC volumetric flow-meters, model LUX60 Atex approved with four pistons, cast iron body, adjustment on each of the four pistons, measurement accuracy +/- 0.2%, very high repeatability; • - Dispenser approved by Tuv Nord; • - The hydraulic unit FIMAC (pump and meter), is MID (Measuring instruments directive- 2004/22/EC) certified and ATEX approved with EEC certificate; headers are all approved for the resale of fuel; • - Electronic double header, model Tw1, with single-sided LCD display in litres; • - Nr.2 Atex eltomatic pulsers; • - Flexible dispensing hose for Diesel, diameter 18/30”, length 4 meters; • - Antistatic flexible dispensing hose for Gasoline, diameter 18/30”, length 4 meters; • - Dispensing ZVA 4.2 nozzle for Diesel; • - Dispensing ZVA 4.2 nozzle for Gasoline; • - Pump equipped with vapor recovery system with Atex approval (only for gasoline version); • - Nozzle holder and aluminum spout holder aluminum; • - Dispenser structure and frame in stainless steel.
