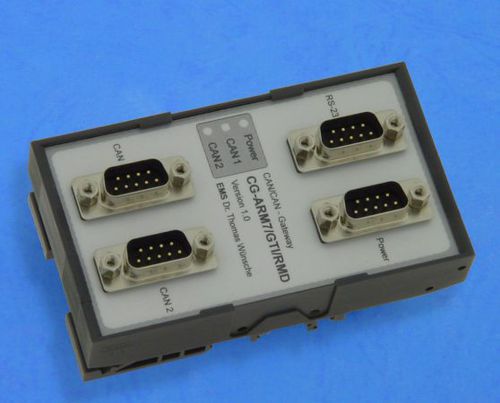

Communication gateway CG-ARM7/GTI
RS232CAN

communication gateway
communication gateway
Add to favorites
Compare this product


Characteristics

Type
communication
Network
RS232, CAN

Description

The CAN/CAN gateway CG-ARM7/GTI transmits CAN signals between subsystems. CG-ARM7/GTI allows a flexible design of the wiring topology. Star and tree structures as well as extensive line structures can be realised. The galvanic separation between the CAN channels allows the use with diverging ground potentials. Among the available functions are data rate adaption, message filtering as well as identifier conversion between the coupled busses. The restriction of the maximum data rate depending on cable length for single CAN segments can be abolished for the over-all system by use of CG-ARM7/GTI. CG-ARM7/GTI obtains its potential through the use of a 32 bit microcontroller with 48MHz clock. High speed processing and low latencies allow the use with high data rates and busloads. Cost efficient series applications are particularly promoted by use of CG-ARM7/GTI. The configuration of the device functions can take place either through CAN or through the built-in RS232 interface. Download software for the configuration is available for Windows PCs as well as Linux PCs. For special tasks, like modification of the data content of the CAN messages, we over a development kit to write custom specific firmware for CG-ARM. Special Features CAN/CAN-Gateway CG-ARM7/GTI Connection of CAN subnetworks with differing data rates Galvanic separation between the CAN channels Galvanic separation of the CAN channels to the power supply Filtering and buffering of data traffic Support of 11 bit and 29 bit identifiers Microcontroller NXP LPC2119 with 2 internal CAN controllers Rail mountable

Catalogs

No catalogs are available for this product.

See all of EMS Dr. Thomas Wünsche e.K.‘s catalogs
