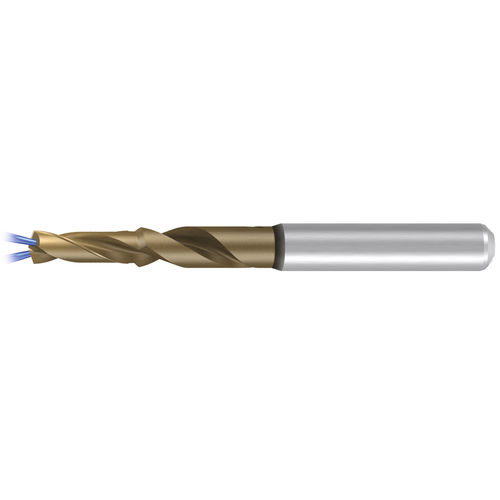

Solid drill bit VHM-EF-Drill C-VA-HA-IK-2FF-ALCR-89for cast ironfor non-ferrous materialsfor steel
Add to favorites
Compare this product
Characteristics
- Type
- solid
- Drilled material
- for cast iron, for non-ferrous materials, for steel, for titanium alloys
- Drill bit material
- carbide
- Other characteristics
- coated, with internal coolant, step, chamfering
- Diameter
Max.: 13.1 mm
(0.52 in)Min.: 5 mm
(0.2 in)- Length
Max.: 115 mm
(4.53 in)Min.: 79 mm
(3.11 in)
Description
Solid carbide chamfer drill EF-Drill C in VA geometry for drilling and chamfering in stainless steel materials.
Product features and benefits:
Economic efficiency thanks to production of drill hole and chamfer in one work step.
Special AlCr-coating for excellent wear resistance and drilling performance.
Economic efficiency thanks to variable step lengths in mm increments.
Technical details
shank style:
HA
type:
Step drills
coolant supply:
internal coolant supply
Geometry:
VA
number of margins:
2
Type of construction standard:
similar DIN 6537K
Coating:
ALCR-89
tolerance work piece:
IT8-IT10
