Vibrating road roller REN

duplexmanual

Product overview

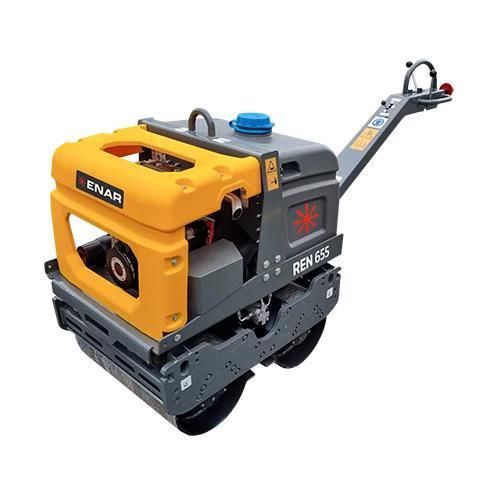

The REN 655DY walk-behind hydraulic vibratory roller provides efficient compaction for soil and asphalt through two selectable vibration stages and an optimised vibration frequency. Fully hydraulic drive and vibration systems reduce maintenance requirements and spare parts needs.

TrackPro compatibility
Compatible with the Bluetooth TrackPro device for recording operational data. Accessible data via the dedicated app include:

• Operating hours
• Operating states
• Next maintenance
• Total CO2 emissions

Benefits

• Maneuverability — 500 mm wheelbase simplifies turning and site handling.
• Shock-resistant structure — protects the engine and extends component life.
• Serviceability — tool-free access to service points reduces maintenance time and costs.
• Edge compaction — no side overhang enables compaction up to walls and curbs.

Available models / variants

• REN 655DY
• REN 655DYB (TrackPro option available)

Technical characteristics

• Centrifugal force: 12 kN (both models)
• Vibration frequency: 56 Hz (both models)
• Engine: YANMAR L70V5 Diesel (both models)
• Width: 650 mm (both models)
• Weight: 615 kg (both models)
• Speed: 3.6 km/h (both models)
• Water tank: 40 L (both models)
• TrackPro: REN 655DY = No; REN 655DYB = Yes

Applications
The REN 655DY is suited for urban works, road maintenance and paving projects where reliable compaction of soil and asphalt is required. Dual vibration levels and a fully hydraulic drivetrain deliver consistent results in demanding site conditions.
