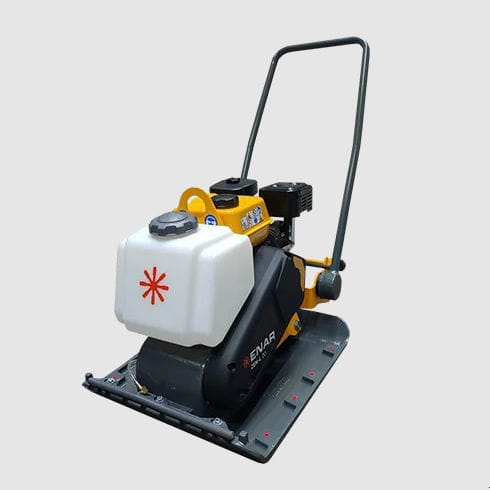

Forward travel vibratory plate ZEN-L series

gasoline enginecompacting

Overview
The new ZEN-L range from ENAR offers a wide variety of single direction vibratory plates with models from 63 to 92 kg. Their compact design allows for compaction of mixed soils in the narrowest of spaces, even in extremely narrow trenches.

• Optional wheel kit and water tank for W models.
• Plate widths available: 350 mm and 500 mm.
• Vibration frequency: 5,800 vib/min.
• Recommended for compacting asphalt, light mixed soils and interlocking paving stones.

Benefits

• AIR FILTER: Cyclonic 3-stage air-filtration system.
• ROBUSTNESS: Tough ductile iron baseplate for high durability and long service life.
• LOW HAND-ARM VIBRATIONS: Guide handle with vibration damping reduces operator fatigue.
• ERGONOMICS: Ergonomically designed lifting handles for easier loading and unloading.

Models & Options

• ZEN-L 12W, ZEN-L 12
• ZEN-L 15W, ZEN-L 15
• ZEN-L 20W, ZEN-L 20
• ZEN-L 12GH, ZEN-L 12GHW
• ZEN-L 15GH, ZEN-L 15GHW
• ZEN-L 20GH, ZEN-L 20GHW
• Optional accessories: Lifting handle kit (4 units), ZEN wheel kit, VULKOLLAN protection set.

Technical characteristics (table)
Characteristic | ZEN-L 12W | ZEN-L 12 | ZEN-L 15W | ZEN-L 15 | ZEN-L 20W | ZEN-L 20 | ZEN-L 12GH | ZEN-L 12GHW | ZEN-L 15GH | ZEN-L 15GHW | ZEN-L 20GH | ZEN-L 20GHW
CENTRIFUGAL FORCE | 12 kN | 12 kN | 15 kN | 15 kN | 20 kN | 20 kN | 12 kN | 12 kN | 15 kN | 15 kN | 20 kN | 20 kN
DIMENSIONS (mm) | 350 x 520 x 820 | 350 x 520 x 820 | 500 x 588 x 940 | 500 x 588 x 940 | 500 x 588 x 940 | 500 x 588 x 940 | 350 x 520 x 820 | 350 x 520 x 820 | 500 x 588 x 940 | 500 x 588 x 940 | 500 x 588 x 940 | 500 x 588 x 940
MOTOR | ENAR G210FA | ENAR G210FA | ENAR G210FA | ENAR G210FA | ENAR G210FA | ENAR G210FA | HONDA GX160 | HONDA GX160 | HONDA GX160 | HONDA GX160 | HONDA GX160 | HONDA GX160
Vibration speed (v.p.m.) | 5.800 | 5.800 | 5.800 | 5.800 | 5.800 | 5.800 | 5.800 | 5.800 | 5.800 | 5.800 | 5.800 | 5.800
WATER TANK | Yes | No | Yes | No | Yes | No | No | Yes | No | Yes | No | Yes
WEIGHT | 65 Kg | 63 kg | 85 kg | 83 kg | 92 kg | 92 kg | 63 kg | 65 Kg | 83 kg | 85 kg | 90 kg | 92 kg


Applications
The ZEN-L unidirectional vibratory plate is ideal for compacting asphalt, light mixed soils and paving stones in small or hard-to-reach spaces such as narrow trenches. Its compact design, range of plate widths and transport options suit urban works and light paving jobs.

Technical specifications

• Series: ZEN-L.
• Vibration frequency: 5,800 vib/min.
• Available plate widths: 350 mm and 500 mm.
• Available centrifugal forces: 12 kN, 15 kN, 20 kN (depending on model).
• Motor options: ENAR G210FA or HONDA GX160 (depending on model).
• Water tank: available on W variants (Yes/No per model).
• Dimensions (examples): 350 x 520 x 820 mm (350 mm plate models); 500 x 588 x 940 mm (500 mm plate models).
• Operating weights by model: 63 kg to 92 kg (specific weights per model listed in the technical table).
• Optional accessories: lifting handle kit (4 units), wheel kit (ZEN WHEEL KIT), VULKOLLAN protection set.
