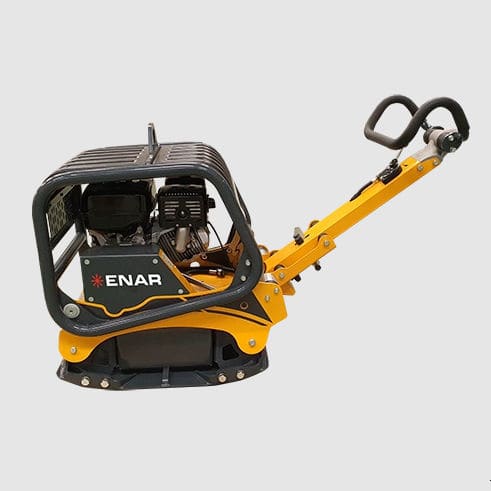

Reversible vibratory plate TEN 35 series

bidirectionalgasoline enginecompacting

Overview
The TEN 35 reversible plate compactor is designed for substantial compaction on granular materials. It features a hydraulic instant-change reversing system, centrifugal-clutch drive and handling/lifting handles for the base plate.

Features

• Hydraulic instant-change reversing system for forward/reverse compaction
• Drive actuated by a centrifugal clutch
• Ergonomic handle with vibration absorption for improved operator comfort
• Low noise transmission to reduce operator exposure
• Suitable for continuous use on demanding job sites

Models and options

• TEN 35 DH — Engine: HATZ 1B30 — Start: Manual — Weight: 215 kg
• TEN 35 DHEL — Engine: HATZ 1B30 — Start: Electric — Weight: 220 kg
• TEN 35 GHEL — Engine: HONDA GX270 — Start: Electric — Weight: 210 kg
• TEN 35 GH — Engine: HONDA GX270 — Start: Manual — Weight: 205 kg

Technical characteristics

• Centrifugal force: 35 kN
• Vibration frequency: 4,500 vib/min
• Dimensions (W x D x H): 90 x 55 x 110 mm
• Available engines: HATZ 1B30, HONDA GX270
• Start options: Manual, Electric
• Weight range: 205–220 kg (depending on model)
• Hydraulic reversing system; centrifugal clutch actuation; handling/ lifting handles
