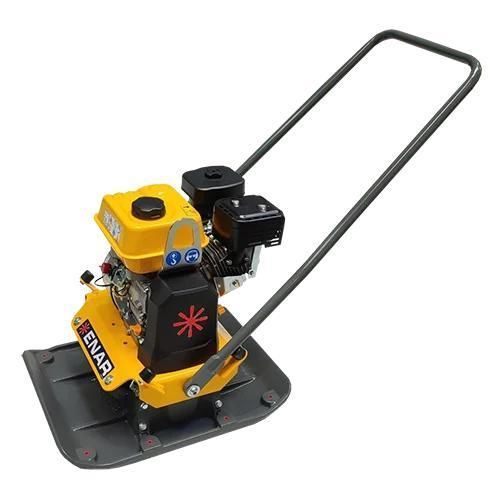

Forward travel vibratory plate ZEN-C 20

compacting

Unidirectional vibratory plate ZEN-C
The ZEN-C unidirectional vibratory plates provide effective compaction of mixed soils in very narrow areas, including extremely narrow trenches.

• Designed for very small and confined spaces; highly maneuverable and agile for precise work.
• Centered attachment of the guide handle allows effortless turning.
• Vibration frequency: 7,000 vib/min.
• Recommended for asphalt, light mixed soils and interlocking paving stones.

Benefits

• Air filter: Cyclonic 3-stage air filtration system.
• Robustness: Ductile iron baseplate for long service life under demanding conditions.
• Low hand-arm vibrations: Guide handle with vibration damping reduces operator fatigue.
• Ergonomics: Ergonomic lifting handles ease loading and unloading from transport vehicles.

Applications
The ZEN-C is ideal for compacting mixed soils, asphalt and paving stones in small or hard-to-reach areas such as narrow trenches. Its compact, maneuverable design and durable base enable precise and comfortable operation in demanding conditions.

Technical specifications

• Product: ZEN-C 20
• Dimensions: 455 x 590 x 840 mm
• Centrifugal force: 20 kN
• Motor: ENAR G210
• Power: 4.4 kW
• Revolutions (rpm): 7,000
• Weight: 87 kg
