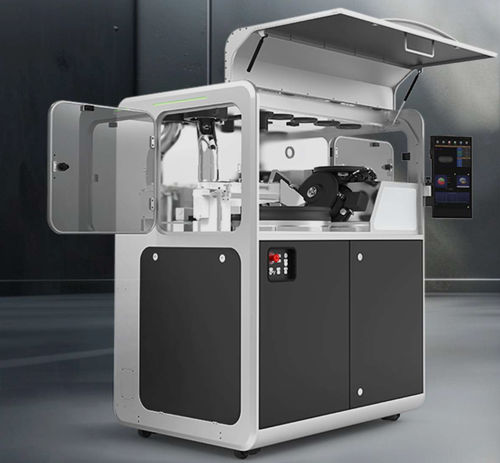

Infrared inspection machine PLANET EV-C

opticalfor capsulesfor the pharmaceutical industry

Product Overview
PLANET EV-C (Planet EV for Capsule) is a high-speed vision inspection system for pharmaceutical capsules. It performs automated exterior and fill-level inspection to detect shape and print defects, cracks, double caps and incorrect fill levels while enabling high throughput and prioritized operator safety.

Key Advantages

• Zero blind spot: comprehensive exterior and fill-level inspection using 14 cameras (mix of 2D and infrared).
• Defect detection: identifies double caps, print/marking errors, cracks and incorrect fill levels.
• Precision feeding: feeding design reduces powder residue from capsule filling.
• Guided stability: stable inspection across a range of capsule sizes and standards.
• Triple checking: triple-layer automatic sorting and safety checks to prevent defective mix-in.
• User friendly: recipe setting and cleaning designed for fast changeovers and efficient workflow.
• Smart learning: automatic learning and storage of capsule features to optimize inspection accuracy.

Detectable defects (examples)

• Double caps
• Print errors / missing or incorrect marking
• Cracks and breakage
• Incorrect fill level
• Shape / form deviations

Speed / Compatibility Table
Type | Size | Speed
Hard Gelatin Capsule | 5 | 160,000
Hard Gelatin Capsule | 4 | 150,000
Hard Gelatin Capsule | 3 | 140,000
Hard Gelatin Capsule | 2 | 130,000
Hard Gelatin Capsule | 1 | 120,000
Hard Gelatin Capsule | 0 | 110,000
Hard Gelatin Capsule | 00 | 100,000

Machine Views / Drawings
Available views: Top View, Front View, Right View and With Drum Lift. Machine dimensions and drawing resources are provided on the product page.

Safety & Operation

• Safety-focused design to protect operators.
• Triple-layer automated sorting and safety checks to avoid defective mix-in.
• User-oriented interface for recipe management and quick changeover.

Characteristics / Technical specifications

• Model / Series: PLANET EV-C
• Brand: ENCLONY
• Cameras: 14 (mix of 2D and infrared)
• Inspection: exterior appearance, print/marking verification, crack detection, fill level measurement
• Throughput (example values by capsule size): up to 160,000 units/h (see Speed / Compatibility Table)
• Feeding: precision feeding design to reduce powder residue
• Compatibility: stable inspection across various capsule sizes and standards
• Safety: triple-layer safety / triple-checking system
• Learning: automatic learning and storage of capsule features for optimized inspection
• Machine views: Top, Front, Right, With Drum Lift (dimension/drawing resources available)
