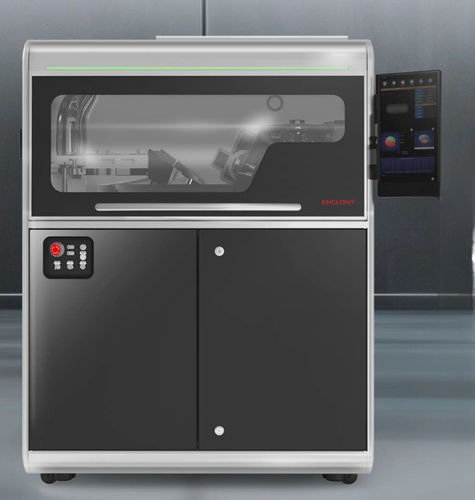

Visual quality control system PLANET EV-TC

Overview
PLANET EV-TC is a vision inspection system for both tablets and capsules. A single platform handles multiple product formats with minimal changeover, providing full-angle inspection coverage through a multi-camera array and integrated feeding solution.

Advantages

• Versatile tooling: equipment setup requires few change parts.
• Flexible handling: one tooling set accommodates multiple shapes with high positioning accuracy.
• Precision feeding: vibration screw feeder ensures controlled de-dusting and stable feed rates.
• Guided stability: 25 pocket guides and 20 rotation guides maintain stable orientation for varied capsule geometries.
• Zero blind spot: multi-angle coverage using combined 2D, 3D and IR cameras.
• Inside & out inspection: internal fill/volume checks combined with external defect detection.
• Triple checking: three-stage separation design prevents mixing of defective products.
• User friendly: recipe-driven setup and simplified cleaning for production workflows.
• Machine learning: stores shape and orientation data to refine inspection performance.
• Operator safety: engineered safety measures protect operators during use and maintenance.

Inspection Capabilities

• Detects cracks, print errors, discoloration, double caps, misprints, fill/level anomalies and a broad range of external and internal defects.
• Standard configuration: 10 × 2D cameras + 2 × 3D cameras for full-angle external coverage.
• Optional configuration: up to 14 × 2D + IR cameras for combined inside-and-out inspection including internal fill volume assessment.

Tooling & Feeding

• Quick changeover with modular tooling sets covering tablets and capsules.
• Vibration screw feeder provides precise feeding and effective de-dusting at high throughput.

Stability & Sorting

• Stable sorting achieved with 25 pocket guides and 20 rotation guides to accommodate diverse shapes and sizes.
• Triple-safety separation logic ensures reliable removal of defective units without cross-contamination.

Table — Type / Size / Speed
Header: Type — Size — Speed
Tablet — Round Tablet (Diameter) — 4.6 ~ 5.3 mm — 425,000
Tablet — Round Tablet (Diameter) — 5.3 ~ 6.1 mm — 370,000
Tablet — Round Tablet (Diameter) — 6.1 ~ 7.1 mm — 320,000
Tablet — Round Tablet (Diameter) — 7.1 ~ 8.2 mm — 280,000
Tablet — Round Tablet (Diameter) — 8.2 ~ 9.3 mm — 240,000
Tablet — Round Tablet (Diameter) — 9.3 ~ 10.7 mm — 210,000
Tablet — Round Tablet (Diameter) — 10.7 ~ 12.4 mm — 180,000
Tablet — Round Tablet (Diameter) — 12.4 ~ 14 mm — 143,000
Tablet — Oval / Oblong (Length) — 10 mm — 230,000
Tablet — Oval / Oblong (Length) — 12 mm — 198,000
Tablet — Oval / Oblong (Length) — 14 mm — 176,000
Tablet — Oval / Oblong (Length) — 16 mm — 154,000
Tablet — Oval / Oblong (Length) — 18 mm — 132,000
Tablet — Oval / Oblong (Length) — 20 mm — 110,000
Tablet — Oval / Oblong (Length) — 22 mm — 99,000
Capsule — Hard Gelatin Capsule — 5 — 160,000
Capsule — Hard Gelatin Capsule — 4 — 150,000
Capsule — Hard Gelatin Capsule — 3 — 140,000
Capsule — Hard Gelatin Capsule — 2 — 130,000
Capsule — Hard Gelatin Capsule — 1 — 120,000
Capsule — Hard Gelatin Capsule — 0 — 110,000
Capsule — Hard Gelatin Capsule — 00 — 100,000

Video
Product video available demonstrating PLANET EV inspection sequences and the full-coverage camera system.

Technical specifications

• Product family / model: PLANET EV-TC (Tablet & Capsule vision inspection system).
• Inspection cameras: 10 × 2D cameras + 2 × 3D cameras (external); optional up to 14 × 2D + IR cameras for inside & out inspection.
• Feeding: vibration screw feeder for precision feeding and de-dusting.
• Sorting/guides: 25 pocket guides and 20 rotation guides for stable sorting across capsule shapes.
• Defect detection: cracks, print errors, discoloration, double caps, misprints, fill volume/level issues, external and internal defects.
• Changeover: minimal changeover with versatile tooling; one tooling set fits multiple product shapes.
• Safety: triple-check separation design and engineered operator safety measures.
• Automation & intelligence: machine learning stores shape and orientation data to improve inspection performance.
• Zero blind spot design: full-angle coverage via multi-camera array (2D / 3D / IR).
• Optional/related equipment: drum lift configurations available; machine views: Top / Front / Right / With Drum Lift.
• Outputs: high-speed inspection throughput values listed in the Type/Size/Speed table above.
