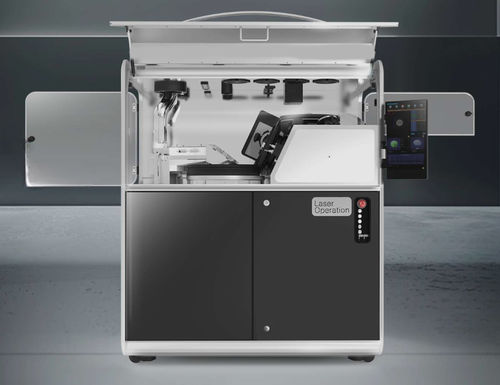

UV laser marking and verification system PLANET EV DLPI_TC

laserautomaticfor the pharmaceutical industry

Overview
Dual-side UV laser printing and vision inspection system designed to print and inspect tablets and capsules in a single, integrated process. World's first UV laser printing on both sides of tablets, enabling simultaneous marking and inspection for faster processing and improved traceability.

Key Advantages

• Dual-side laser marking: UV laser printing on both tablet faces.
• Print & Inspect in One Step: Simultaneous marking and vision inspection to streamline production.
• Faster processing: Integrated marking and inspection for improved throughput.
• Quick Change: Minimal part changes for fast and easy equipment setup.
• Flexibility: One set of tooling fits various product shapes with high precision.
• Precision Feeding: Equipped with a precision vibrating screw feeder for flawless separation and transfer.
• Guided Stability: 25 pocket guides and 20 rotation guides to position and sort products reliably.
• Zero Blind Spot Inspection: Uses multiple cameras to ensure complete coverage.
• User friendly: Simplified recipe settings and easy cleaning maximize operational efficiency.
• Smart Study: Machine learning stores unique optical characteristics of each product for improved defect detection.
• Safety: Engineered with high safety standards and a three-step (triple) checking system to prevent mix-ups.

Inspection & Detection

• Tablet inspection: Uses 10 2D cameras plus 2 3D cameras to eliminate blind spots.
• Capsule inspection: Inspects capsule shape and internal content with 14 2D and infrared cameras.
• Detected tablet defects include cracks, poor printing, and color inconsistency.
• Detected capsule defects include double caps, printing errors, and weight issues.

Print Capability
Simultaneous UV laser marking and inspection for both tablets and capsules; designed to ensure traceability and accuracy while streamlining process flow.

Speed by Type and Size
Type | Size | Speed (units/hour)
Tablet - Round (Diameter) 4.6 ~ 5.3mm | 425,000
Tablet - Round 5.3 ~ 6.1mm | 370,000
Tablet - Round 6.1 ~ 7.1mm | 320,000
Tablet - Round 7.1 ~ 8.2mm | 280,000
Tablet - Round 8.2 ~ 9.3mm | 240,000
Tablet - Round 9.3 ~ 10.7mm | 210,000
Tablet - Round 10.7 ~ 12.4mm | 180,000
Tablet - Round 12.4 ~ 14mm | 143,000
Oval/Oblong Tablet (Length) 10mm | 230,000
Oval/Oblong 12mm | 198,000
Oval/Oblong 14mm | 176,000
Oval/Oblong 16mm | 154,000
Oval/Oblong 18mm | 132,000
Oval/Oblong 20mm | 110,000
Oval/Oblong 22mm | 99,000
Capsule - Hard Gelatin (size 5) | 160,000
Capsule - size 4 | 150,000
Capsule - size 3 | 140,000
Capsule - size 2 | 130,000
Capsule - size 1 | 120,000
Capsule - size 0 | 110,000

Notes
Speed ranges depend on product type and size; table above reproduces the page's throughput guidance for various tablet and capsule sizes.

Caractéristiques / Spécifications techniques

• Model family: PLANET EV DLPI_TC (dual-side DLPI for tablet & capsule).
• Laser: UV laser capable of printing on both tablet sides (dual-side UV laser marking).
• Cameras (tablet): 10 x 2D cameras + 2 x 3D cameras (no blind spots).
• Cameras (capsule): 14 x 2D cameras + infrared cameras for internal content inspection.
• Feeding: Precision vibrating screw feeder for separation and transfer.
• Guides: 25 pocket guides and 20 rotation guides for product positioning.
• Inspection: Inside & outside inspection capabilities; simultaneous marking and inspection workflow.
• Algorithm / Learning: Machine-learning-based storage of optical characteristics per product.
• Safety: Three-step triple-checking safety system to ensure zero mix-up risk and high operator safety.
• Quick-change tooling: Designed for minimal part changes to speed setup between products.
• Throughput: See speed table above (units/hour) by product type and size.
