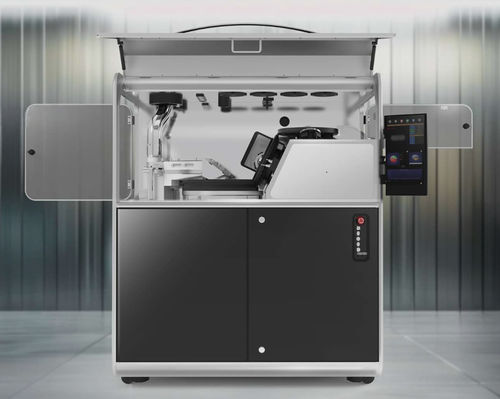

Visual quality control system PLANET EV CI

Overview
Designed for handling highly potent and hazardous drug forms, the ENCLONY PLANET EV CI Containment Vision Inspection System provides a fully sealed inspection environment to prevent powder dispersion and external exposure. The system supports Wash‑In‑Place (WIP) configurations and automatic interior cleaning after inspection to maintain containment integrity and operator safety.

Advantages

• Fully sealed containment to prevent product dust dispersion and protect operators
• Modular and customizable design to adapt to specific production environments and regulations
• Engineered for waterproofing and in‑place cleaning with multiple WIP accessory options
• OEB Level 5 compliant sealed architecture for high containment requirements
• Capable of inspecting multiple dosage forms on a single machine

Inspection Capabilities

• Zero blind‑spot external inspection using multiple camera angles
• 10 × 2D cameras and 2 × 3D cameras for comprehensive external surface inspection
• Capsule inside/out inspection using 14 × 2D and infrared cameras to assess capsule shape and internal content
• Machine‑learning models record optical signatures of each SKU to improve defect detection accuracy

Defects Detected

• Tablet: cracks, print defects, color variation, incomplete printing
• Capsule: double caps, print errors, weight anomalies, internal content irregularities

Performance (throughput by product type)
Type | Size | Speed
Tablet — Round Tablet (Diameter): 4.6 ~ 5.3mm | 315,000
5.3 ~ 6.1mm | 265,000
6.1 ~ 7.1mm | 215,000
7.1 ~ 8.2mm | 197,000
8.2 ~ 9.3mm | 180,000
9.3 ~ 10.7mm | 160,000
10.7 ~ 12.4mm | 135,000
12.4 ~ 14mm | 110,000

Tablet — Oval / Oblong (Length): 10mm | 180,000
12mm | 160,000
14mm | 145,000
16mm | 125,000
18mm | 110,000
20mm | 90,000
22mm | 80,000

Capsule — Hard Gelatin Capsule: Size 5 | 135,000
Size 4 | 125,000
Size 3 | 120,000
Size 2 | 110,000
Size 1 | 100,000
Size 0 | 90,000
Size 00 | 80,000

Additional Features

• Precision vibrating‑screw feeder for reliable separation and transfer
• 25 pocket guides and 20 rotation guide types for stable positioning of diverse shapes
• Three‑step safety (Triple Checking) system to prevent mix‑ups during sorting
• Simplified recipe management and easy‑clean design to reduce changeover time
• Adaptive machine‑learning algorithm for continuous inspection optimization and defect analysis

Technical specifications

• Brand: ENCLONY
• Model: PLANET EV CI
• Containment: Fully sealed system designed to prevent powder dispersion and external exposure
• OEB compliance: Designed to meet OEB Level 5 for operator protection
• Cleaning: Wash‑In‑Place (WIP) capable; automatic internal cleaning after inspection
• Cameras (external): 10 × 2D + 2 × 3D for complete external inspection
• Cameras (capsule inside/out): 14 × 2D + infrared cameras for internal content inspection
• Feeding: Precision vibrating screw feeder
• Guides: 25 pocket guides and 20 rotation guide types for varied product shapes
• Defect detection: Cracks, print defects, color inconsistency, double caps, weight anomalies, internal irregularities
• Throughput examples: Up to 315,000 units/hour for small round tablets (4.6–5.3 mm); see list above for per‑size speeds
• Customization: Flexible configuration to match production layout and regulatory requirements
• Safety: Triple checking and sealed architecture to minimize contamination and cross‑contamination risk
• Media: Video demonstration available (embedded on product page)
