Quality control vision system PLANET EVS-TC

machine visionmonitoringdetection

Overview

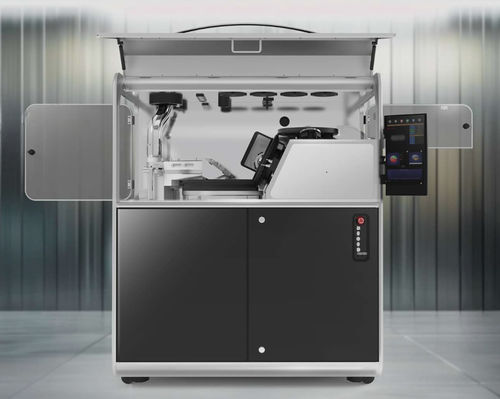

PLANET EVS-TC is a high-speed vision inspection system for tablets and capsules, combining multi-camera 2D/3D imaging and infrared to detect coating, shape, breakage, printing and fill/weight defects while minimizing false rejects and mix-ups.

Key advantages

• Industry-leading speed: achieves extremely high throughput with sustained accuracy and stability.
• Quick changeover: minimal part changes for fast setup between products.
• Precision feeding: vibrating screw feeder ensures reliable separation and transfer.
• Guided stability: 25 pocket guides and 20 rotation guides for consistent positioning of varied shapes.
• Complete coverage: multiple 2D and 3D cameras eliminate blind spots.
• Internal inspection: infrared cameras enable capsule internal content and fill/weight checks.
• Triple-check safety: three-step verification prevents mix-ups and ensures correct sorting.
• Operator-friendly: simplified recipe management and easy-access cleaning for efficient operation.
• Adaptive detection: machine learning stores optical signatures per product to improve defect recognition.
• Safety-compliant: designed to comply with industrial safety standards protecting operators.

Inspection capabilities

• Tablet inspection: detects cracks, printing defects, color inconsistency, coating faults, shape deviations and breakage.
• Capsule inspection: verifies capsule shape, double caps, printing errors, internal fill/weight and content using infrared imaging.
• Cameras: configurable multi-camera setup including 2D and 3D units (see technical specifications for typical configurations).

Speed / Throughput (selected table)
Type | Size | Speed (pieces/hour)
Round Tablet (Diameter) | 4.6 ~ 5.3mm | 600,000
Round Tablet (Diameter) | 5.3 ~ 6.1mm | 520,000
Round Tablet (Diameter) | 6.1 ~ 7.1mm | 450,000
Round Tablet (Diameter) | 7.1 ~ 8.2mm | 390,000
Round Tablet (Diameter) | 8.2 ~ 9.3mm | 340,000
Round Tablet (Diameter) | 9.3 ~ 10.7mm | 300,000
Round Tablet (Diameter) | 10.7 ~ 12.4mm | 257,000
Round Tablet (Diameter) | 12.4 ~ 14mm | 200,000
Oval / Oblong Tablet (Length) | 10mm | 300,000
Oval / Oblong Tablet (Length) | 12mm | 250,000
Oval / Oblong Tablet (Length) | 14mm | 210,000
Oval / Oblong Tablet (Length) | 16mm | 190,000
Oval / Oblong Tablet (Length) | 18mm | 170,000
Oval / Oblong Tablet (Length) | 20mm | 140,000
Oval / Oblong Tablet (Length) | 22mm | 130,000
Capsule (Hard Gelatin) | size 5 | 210,000
Capsule (Hard Gelatin) | size 4 | 195,000
Capsule (Hard Gelatin) | size 3 | 180,000
Capsule (Hard Gelatin) | size 2 | 170,000
Capsule (Hard Gelatin) | size 1 | 155,000

Visual / Drawing views available
Top View
Front View
Right View
With Drum Lift

Technical specifications

• Model: PLANET EVS-TC
• Brand: ENCLONY
• Inspection target: Tablets and Capsules (coating, shape, breakage, printing, fill/weight, double caps, color consistency)
• Camera setup: multiple cameras including 2D and 3D cameras (typical configurations: 10x 2D + 2x 3D for tablets; 14x 2D + infrared for capsules)
• Feeding: precision vibrating screw feeder for separation and transfer
• Guides: 25 pocket guides and 20 rotation guides for stable positioning and sorting
• Safety: three-step safety / triple checking system to prevent mix-ups
• Machine views/drawings: Top/Front/Right/With Drum Lift and downloadable dimension drawings available
• Typical throughput: up to 600,000 pcs/hour for small round tablets (throughput varies by product size and type)
