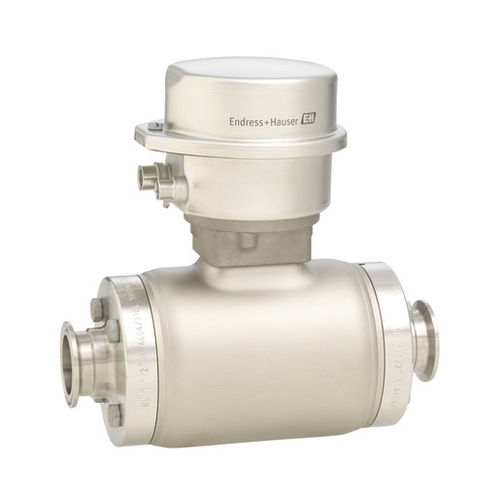

Electromagnetic flowmeter 5H5B
DN150 - 6"stainless steelRS485

electromagnetic flowmeter
electromagnetic flowmeter
electromagnetic flowmeter
Add to favorites
Compare this product


Characteristics

Technology
electromagnetic
Pipe diameter
DN150 - 6"
Material
stainless steel
Communication
4-20 mA, RS485, Modbus, PROFIBUS
Protection level
ATEX
Applications
for the food industry
Other characteristics
precision, programmable, maintenance-free
Volumetric flow rate

Min.: 0 m³/h
(0 ft³/h)

Max.: 600 m³/h
(21,188.8 ft³/h)

Process temperature

Min.: -20 °C
(-4 °F)

Max.: 150 °C
(302 °F)

Process pressure

40 bar
(580.15 psi)

Precision

0.5 %

Description

Promag H is the preferred sensor for hygienic applications with highest requirements in the food and beverage and life sciences industries. With its innovative remote transmitter Promag H 500 maximizes installation flexibility and operational safety in demanding environments. Heartbeat Technology ensures compliance and process safety at all times. The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity Dedicated to demanding applications in the food and beverage as well as in life sciences industries Device properties Liner made of PFA Sensor housing made of stainless steel (3-A, EHEDG) Wetted materials CIP, SIP cleanable Remote version with up to 4 I/Os; hygienic sensor connection housing with IP69 Backlit display with touch control & WLAN access Standard cable between sensor & transmitter Benefits Multivariable measurement for flow, temperature and conductivity Flexible installation concept – numerous hygienic process connections Energy-saving flow measurement – no pressure loss due to cross-section constriction Maintenance-free – no moving parts Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses Reduced complexity and variety – freely configurable I/O functionality Integrated verification – Heartbeat Technology

Catalogs

No catalogs are available for this product.

See all of Endress+Hauser AG‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
