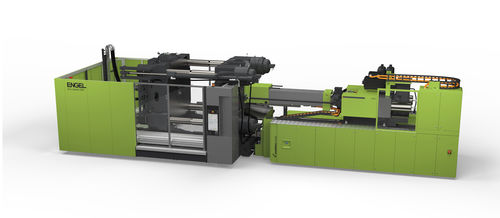

Horizontal injection molding machine duo speed series

servo-hydraulicfor HDPEfor PP

Overview
The duo speed is a compact, high-performance two-platen large injection molding machine designed for packaging and logistics. Fully servo‑hydraulic with an electric screw drive, it delivers extremely short dry cycle times and high process precision. Available clamping forces range from approx. 4,000 to 11,500 kN. Typical dry cycle times are approx. 1.9–2.9 s depending on part and process.

Applications

• Packaging production: thin‑wall containers, closures, food packaging, pails (example: five‑gallon pail)
• Logistics and large cavity parts requiring high output and short cycles
• Multi-material and recycled-core overmolding processes (e.g. recycled core encapsulated by virgin material)

Features & Benefits

• Two‑platen design: compact footprint and accessible mold area with exposed tie‑bars
• Servo‑hydraulic drive with ecodrive components to optimize energy consumption
• Electric screw drive and injection accumulators for rapid, demand‑based injection
• Optimized screw (barrier screw) and ring check valve as standard for PP/HDPE
• Improved clamping unit: reinforced movable platen, linear guides (options up to 900 t), predictive locking with additional accumulators to reduce switching times
• Integrated control concept CC300: modern HMI, flexible configuration and robot integration
• High process stability and part quality: precise clamping force distribution and platen parallelism control; digital aids (e.g. inject AI) available
• Automation‑ready: compatible with robots (e.g. ENGEL viper series) and integrated conveyor solutions

Data & Facts
Machine type: Two‑platen
Drive: Servo‑hydraulic with ecodrive components
Clamping force: approx. 4,000 – 11,500 kN
Dry cycle times: approx. 1.9 – 2.9 s

Technical specifications

• Product series: duo speed
• Construction: two‑platen, fully servo‑hydraulic
• Screw drive: electric screw drive
• Injection unit: accumulators for rapid injection; demand‑based charging; barrier screw and ring check valve (standard for PP/HDPE)
• Clamping unit: reinforced movable platen, linear guides, predictive locking with additional accumulators
• Mold area: exposed tie‑bars for accessibility; compact layout for large molds
• Control system: CC300 integrated control with robot integration and uniform HMI
• Automation: robot integration and conveyors (e.g. ENGEL viper)
• Target industries: packaging, logistics, thin‑wall and high‑speed injection molding
