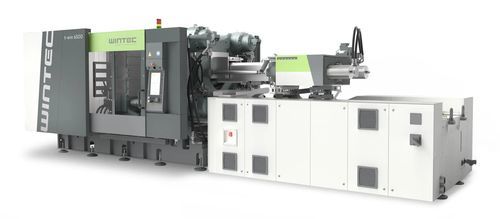

Horizontal injection molding machine t-win

servo-hydraulicfor rapid production cyclestwo-platen

Overview
The WINTEC t-win is an economical two‑platen, servo‑hydraulic injection moulding machine engineered for near‑standard, high‑volume production. It delivers a compact footprint, energy‑efficient operation and high availability across a broad application range — from household goods to automotive components. Clamping forces cover approx. 4,500 kN to 40,000 kN.

Key features

• Two‑platen clamping design for high stiffness with a compact footprint
• Precise linear guides and synchronized locking for stable mould support
• Short‑stroke pressure pad and exposed tie‑bars for fast tool changes and simplified maintenance
• Compact machine layout optimised for space‑saving production cells
• Servo‑hydraulic (servowin) drive concept for energy‑efficient, high‑throughput operation

Clamping unit / mechanical design
The clamping unit features two platens with accurate linear guidance and synchronized locking to ensure stability during high‑speed cycles. The short‑stroke pressure pad and exposed tie‑bars streamline maintenance and reduce tool change times.

Injection unit & drive
Powerful injection units combined with the servowin servo‑hydraulic drive offer balanced performance and flexibility for various shot weights and cycle time requirements. The compact injection design supports fast setup and efficient production.

Control and digital assistance
The intuitive Control Unit C3 provides e‑move functionality, digital assistants and extensible process‑support functions to simplify operation and achieve reproducible results across series production.

Applications — examples

• Automotive parts: series production of interior/exterior components, suitable for processes like physical foaming with focus on part quality and cost efficiency.
• Battery housings: example t‑win 5500 — clamping force ~5,500 kN, shot weight ~970 g, cycle time example ~75 s (application test data).
• Decorative and packaging: compact t‑win 4500 configured for fast movements and short clamping build‑up to minimise cycle times for containers and closures.
• Technical components and fittings: multi‑cavity layouts and short cycles for high productivity of small to medium‑sized parts.

Brand / Concept
WINTEC, a brand of the ENGEL Group (founded in Changzhou in 2014), focuses on reliable machines and services for the commodity segment. WINTEC machines are developed with global engineering collaboration and Austrian engineering principles to balance performance and cost effectiveness.

Technical specifications

• Machine type: Two‑Platen
• Drive type: Servo‑Hydraulic (servowin)
• Clamping force (range): approx. 4,500 kN to 40,000 kN
• Control unit: C3 (intuitive operation, e‑move, digital assistants)
• Clamping unit: two platens, precise linear guides, short‑stroke pressure pad, synchronized locking, exposed tie‑bars
• Injection unit / drive: hydraulic injection unit with servowin drive for energy‑efficient operation
• Target applications: near‑standard, high‑volume production — household goods, technical parts, packaging, automotive components
