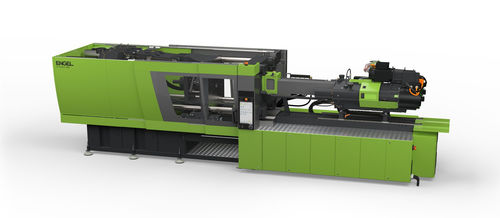

Horizontal injection molding machine e-motion serries

electrictoggletie-bar-less

Overview
The e-motion series from ENGEL is a universal all-electric injection molding machine designed for cleanroom-capable, high-precision and multi-component production. The concept focuses on energy-efficient servo-electric drives, compact automation cells and flexible injection unit configurations for packaging, medical and technical molding applications.

Applications

• Packaging: thin-wall containers, rPET yogurt cups and other high-speed packaging parts.
• Medical & diagnostics: cell-culture plates, well plates, diagnostic components produced in cleanroom environments.
• Hygiene & small parts: interdental brushes, small finely shaped items.
• Technical molding and electronics: precision components and multi-component assemblies.

Control & automation
Integrated CC300 machine control with intuitive operating logic, customizable configuration and full robot/peripheral integration to simplify automation and cell design.

Injection unit
Flexible injection module range with multiple plasticizing components and three performance levels for the injection axis, enabling adaptation to thin-wall, rPET and high-flow applications (e.g., PREMIUM aggregates such as 2465 PREMIUM in selected configurations).

Drives & energy efficiency
Servo-electric drives on all axes deliver high dynamics and repeatability while minimizing energy consumption, reducing operating costs in high-cycle production.

Clamping unit & systems
Dynamic toggle clamping with patented encapsulated toggle lubrication system as standard; tie-barless variants available for special automation and fast mold changes.

Features & benefits

• Energy-efficient operation with servo-electric drives across all movements.
• High precision and repeatability for medical and technical applications.
• Flexible configuration: injection and clamping options adapted to process requirements.
• Compact production cells that ease robot and peripheral integration.
• Digital services: e-connect.monitor and tailored service packages for condition monitoring and proactive maintenance.

Examples / Model notes
Typical configurations and demos include e-motion 110 T, e-motion 220, e-motion 280 and e-motion 420. Tie-barless variants are offered in related product families for specific automation needs.

Technical specifications (overview)

• Series / model: e-motion
• Machine type: toggle (knee-lever) design
• Drive: all-electric (servo-electric drives on all axes)
• Clamping force: < 6,500 kN (series top range)
• Injection unit: flexible plasticizing modules; three performance levels for the injection movement
• Control: CC300 integrated machine control
• Applications: packaging, medical technology, electronics, technical molding; multi-component capable
• Cleanroom suitability: designed for clean-room production
• Cycle time capability: sub-2-second cycles possible in dedicated configurations
• Special options: encapsulated toggle lubrication system, tie-barless variants
• Services & digital: e-connect.monitor for condition monitoring and service packages
