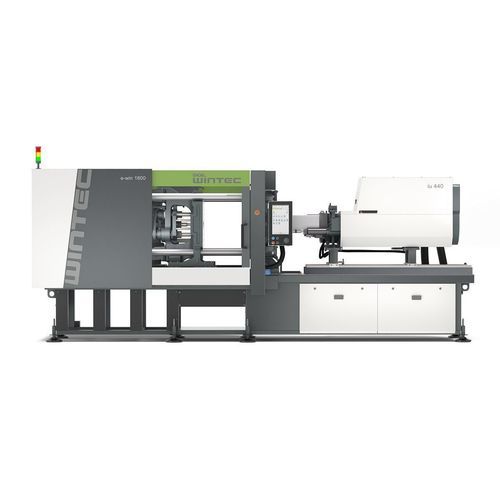

Horizontal injection molding machine e-win

servo-electrictoggle

Overview
The WINTEC e-win all-electric injection molding machine is engineered for high-volume, near-standard production. It combines precise servo-electric injection with a compact clamping unit and generous tie-bar spacing to enable efficient floor-space usage and smooth automation integration.

Key features

• All-electric drive concept for precise, energy-efficient operation
• Servo-electric injection drives ensuring uniform, precise injection movement and high repeatability
• C3 control system with logical menu navigation, intuitive operation and digital assistants
• Compact clamping unit designed for high floor-space productivity and easy integration of automation
• Generous tie-bar distance permitting larger molds, simpler mold changes and automated integration
• Engineered for consistently high output with minimal rejects

Benefits

• Reduced rejects and stable processes due to high repeatability
• Lower energy consumption compared with conventional machines
• High floor-space productivity from compact design
• Rapid operator familiarisation via intuitive C3 control and digital support functions

Technical highlights & usage

• Precision injection unit: servo-electric drives deliver uniform, precise injection movement for stable processes and minimized rejects
• Easy operation: C3 control unit with logical navigation, digital assistants and extension functions to support demanding tasks
• Compact, high-performance clamping unit enabling productive use of floor space and simplified automation integration
• Application focus: cost-effective, large-scale production of standard components where energy efficiency and repeatability are priorities

Caractéristiques / Spécifications techniques

• Marque: WINTEC (a Brand of the ENGEL Group)
• Modèle commercial: e-win
• Machine type: Toggle (page facts)
• Drive: All-electric
• Clamping force: < 5,000 kN (page facts)
• Injection system: servo-electric injection unit (precision injection unit)
• Control: C3 control system (intuitive operation, digital assistants)
• Design: compact clamping unit with generous tie-bar distance for large molds and automation
• Target applications: high-volume / near-standard production, packaging and standard components
