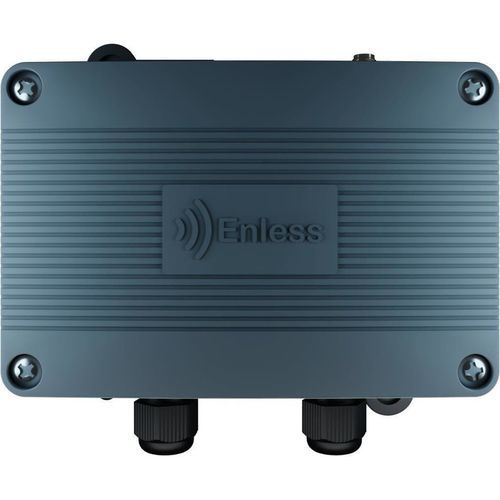

Wireless receiver RX BACNET 500-312

radioUHFfor sensors

Overview
Simplify integration of Enless LoRa sensor data into BACnet systems with this BACnet LoRa Easy receiver. Designed to communicate exclusively with Enless sensors using the LoRa Easy proprietary protocol, the receiver centralizes incoming frames and converts them automatically into BACnet objects, making sensor data immediately available on BACnet IP or BACnet MS/TP networks.

Protocol & Integration
The receiver decodes the Enless LoRa Easy protocol natively and maps sensor frames to BACnet objects. Supported BACnet transports: BACnet/IP and BACnet MS/TP. Configuration and pairing are handled via an embedded web configuration server.

Key features

• Native LoRa Easy decoding for Enless sensors (proprietary LoRa protocol)
• Automatic conversion of received frames into BACnet objects
• Connectivity: BACnet IP and BACnet MS/TP supported
• Radio capacity: up to 50 Enless sensors (Enless sensors only)
• Embedded configuration server with simplified web interface for fast setup and pairing
• DIN-rail or screw mounting
• Power supply: 7.5–24 V DC

Super-easy setup (summary)

• 1. Access the embedded configuration server hosted on the receiver to configure settings.
• 2. Pair sensors: enter sensor IDs on the server, power the sensors and pairing is established instantly; verify reception and radio link quality in real time.
• 3. Connect the receiver physically to your controller or BMS; the controller can then discover the BACnet receiver and retrieve data.
• 4. Start the BACnet discovery. Two discovery modes are available:
  • Device Mode: paired sensors appear individually as BACnet devices on the network.
  • Object Mode: BACnet objects contained in the receiver are presented during discovery.

Compatibility with BMS / PLC
The receiver has been tested with major BMS controllers and PLC integrations commonly used in building automation. Consult the product page for examples of tested ecosystems and integration notes.

Available models

• EU868 — Part Number: RX BACNET 500-312
• US915 — Part Number: RX BACNET 500-512

Resources available
Downloadable documentation includes product sheets (English and French), EU Declaration of Conformity, FCC/ISED certificates (for US model), installation and wiring guides, and firmware files. These resources provide model-specific datasheet, certification and installation details.

Technical specifications

• Supported protocol: LoRa Easy (Enless proprietary)
• Radio frequency: EU868 (EU model) or US915 (US model)
• Radio capacity: up to 50 Enless sensors (Enless sensors only)
• Dimensions: W 118 x H 79 x D 43 mm
• Mounting: DIN-rail or screw mounting
• Ingress rating: IP60
• Compatibility: native decoding for Enless sensors only
• BACnet: BACnet/IP and BACnet MS/TP supported
• Power supply: 7.5–24 V DC
• Configuration: embedded web configuration server
• Certifications: EU model — CE & UKCA; US model — FCC & ISED
• Part numbers: RX BACNET 500-312 (EU868), RX BACNET 500-512 (US915)
