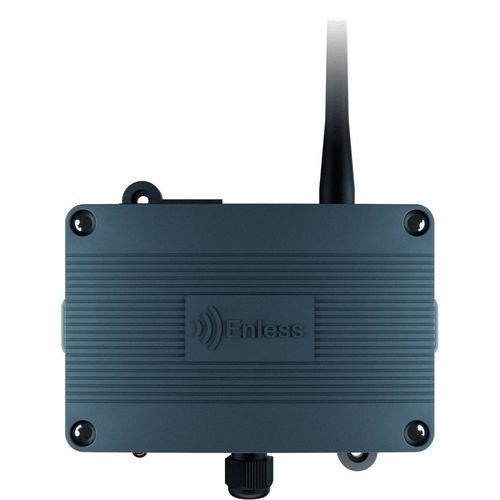

Plug-and-play repeater RX REPEATER 600-301

24V DCextended rangewireless

Overview
The LoRa Easy signal repeater relays messages from LoRa Easy sensors to a LoRa Easy receiver without any configuration. Installed roughly halfway between transmitters and the receiver, it forwards all received frames to improve received signal strength at the gateway.

Key features

• No configuration required: plug in and relay all frames it receives.
• Ideal placement: halfway between sensors and the LoRa Easy receiver.
• Can be daisy-chained (multiple repeaters supported) — note each repeater increases radio traffic and collision risk.
• Supplied with a 1/4-wave antenna.

Compatibility and usage

• Compatible with the LoRa Easy protocol (Enless proprietary mode).
• Not compatible with LoRaWAN mode.
• Useful to relay messages from Enless sensors to a LoRa Easy receiver (Modbus or BACnet).

Available models

• EU868 — Part Number: RX REPEATER 600-301
• US915 — Part Number: RX REPEATER 600-501

Resources

• French Product Sheet (RX REPEATER 600-301)
• English Product Sheet (RX REPEATER 600-301)
• English Product Sheet (RX REPEATER 600-501)
• EU Declaration of Conformity
• Installation Guide

Technical specifications

• Supported protocol: LoRa Easy
• Radio frequency: EU868 or US915 (model dependent)
• Antenna: Supplied 1/4-wave antenna
• Radio capacity: No limit on number of frame repetitions
• Dimensions: W 118 × H 79 × D 43 mm
• Installation: DIN-rail or screw mounting
• IP rating: IP60
• Compatibility: Repeats only Enless sensors
• Power supply: 7.5–24 V DC
• Setup: No configuration required
• Certifications: CE & UKCA (EU model); FCC & ISED (US model)
