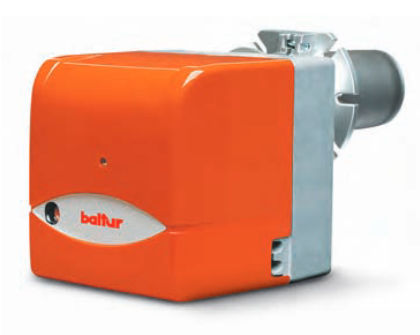

Nozzle mix burner 16.6 - 42.7 kW | BTL 3

fuel oildieseldirect fired

The device offers single stage operation (on / off) by working under High pressure mechanical atomization of fuel using nozzle. The ability to obtain optimal combustion values by regulating combustion air and blast-pipe is available . Manually the air flow can be adjusted and if we choose to utilize bio diesel light oil fuel oil vegetable oil, the burner must be built with specifies components: flexible hoses, line filter and pump. The instrument is equipped with one 7-pole connector attached to one flange and one insulating seal for boiler fastening, 2 flexible hoses, one line filter and one nozzle. On request longer blast tube, operation on biodiesel fuel is offered.
