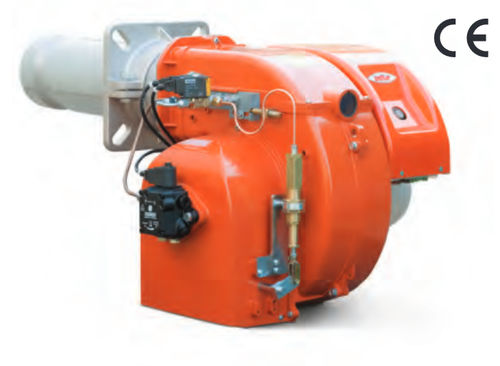

Nozzle mix burner 160 - 600 kW | TBL-P series
fuel oilnatural gasdirect fired

nozzle mix burner
nozzle mix burner
nozzle mix burner
Add to favorites
Compare this product


Characteristics

Type
nozzle mix
Power source
fuel oil, natural gas
Firing
direct fired
Convection
natural convection
Power

Min.: 160,000 W (545,942.4 BTU/h)

Max.: 600,000 W (2,047,284 BTU/h)

Description

TECHNICAL AND FUNCTIONAL CHARACTERISTICS • Two-stage opération (high/low flame). • High ventilation effidency. low electrical input, low noise. • Ability to obtain optimal combustion values by regulating combustion air and blast-pipe. • Exhaust gas recycling combustion head able to achieve low pollutant émissions . NOx (class II according to European Norm EN267). • Maintenance facilitated by the fact that the mixing unit can be removed without having to remove the burner from the boiler. • Air flow régulation for first and second stage by means of hydraulic jack. • When using biodiesel light oil (fuel of vegetable origin). the burner must be built with spedfic components: flexible hoses. line filter and pump. • Equipped with one 4-pole connector and one 7-poJe connector. one flange and one insulating seal for boiler fastening, 2 flexible hoses and two nozzle. • On request: device for air gâte dosure during pause to avoid loss of heat up flue. biodiesel running.
