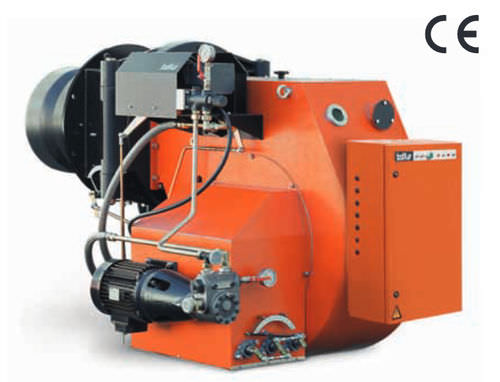

Nozzle mix burner 2 500 - 10 500 kW | GI 1000 DSPN-D

heavy fuel oilfuel oildirect fired

TECHNICAL AND FUNCTIONAL CHARACTERISTICS • Two-stage progressive output opération. • Continuous modulation opération by installing P.I.D. contrôler on control panel (to be ordered separately with modulating kit). • Ability to obtain optimal combustion values by regulating combustion air and blast-pipe. • Maintenance fadlitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler. • Minimum and maximum air flow régulation for first and second stage by means of electric servomotor with pause closure of gâte to prevent any heat dispersion to flue. • On request it is possible to add to the burner a supplementary heavy oil pre- heater using steam. which means the fuel can be heated by the steam from the boiler to provide an energy saving. • Equipped with one insulating seal for boiler fastening. 2 flexible hoses and one self-cleaning line filter with résistance; nozzle not induded, to be separely ordered depending on the required flow. • On request: steam pre-heater.
