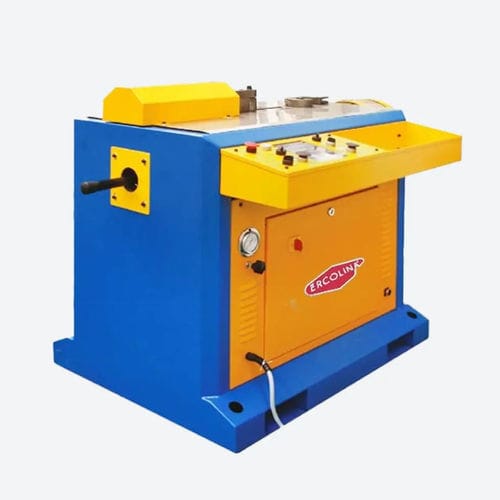

Electro-hydraulic bending machine EF35 series

motorizedbarconcrete reinforcement

Product overview
The EF35 is a metal forming machine for curling, twisting and bending solid iron and similar metal bars. It is designed for both commission work and medium‑volume production and can be fitted with an optional tube bending module.

Features

• 32×32 mm capacity – solid square
• Programmable touch pad control with backlit screen
• Suitable for commission and production environments
• Quick and simple replacement of modules and devices
• Dual‑speed motor with electronic brake for repeatability and productivity
• Programmable hydraulic thrust
• Low‑voltage controls
• Robust, heavy structure with rigid elements
• Optional tube bending module

Product attributes
Minimum external diameter: ⌀ 20 mm
Maximum external diameter: 220 mm

Technical specifications

• Useful processing length (twister accessory): 1500 mm (2 m), 2500 mm (3 m), 5500 mm (6 m)
• Installed power: 2.6 kW
• Motor speed: 1.5 / 3 rpm
• Power supply: 220 / 400 V
• Front mandrel speed: 4.3 / 8.6 rpm
• Dimensions (L × W × H): 810 × 900 × 3030 mm (2 m); 810 × 900 × 4030 mm (3 m); 810 × 900 × 7030 mm (6 m)
• Weight: 500 kg (2 m); 510 kg (3 m); 540 kg (6 m)

Available models

• EF35-2MT — for iron deformation L=2 m, complete with Curling, Spiral and Iron Bender modules — three-phase
• EF35-3MT — for iron deformation L=3 m, complete with Curling, Spiral and Iron Bender modules — three-phase
• EF35-6MT — for iron deformation L=6 m, complete with Curling, Spiral and Iron Bender modules — three-phase

Applications

• Curling, spiral forming and bending of iron bars and similar profiles
• Rebar processing and architectural metal fabrication
• Optional tube bending for round and hollow sections (with module)

Additional information
Modules and options allow fast reconfiguration for mixed production runs. For exact material compatibility and cycle rates, consult technical sales with the intended bar section and production requirements.
