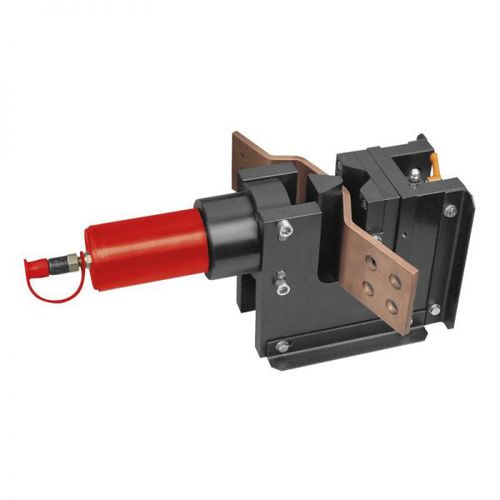

Electro-hydraulic bender HGD 125busbarhorizontal
Add to favorites
Compare this product
Characteristics
- Operation
- electro-hydraulic
- Product handled
- busbar
- Displacement
- horizontal
- Bending angle
90 °
- Bending force
190 kN
- Overall length
370 mm
(15 in)- Total height
585 mm
(23 in)
Description
Bender-puncher for bending Al and Cu busbars as well as hole punching:
• busbar width from 30 ÷ 125 mm
• busbar thickness 5 ÷ 10 mm
• round holes punching of 6,6 ÷ 21 mm
• oval holes punching of 8,5 ÷ 21 mm
• equipped with rulers for positioning when punching holes
• electric sensor (HGD 105- limit switch) enables reapetable bending
Works with H 800 hydraulic pump and AH 100, AH 500, AH 550, AH 500L hydraulic units.
Pressure: 630 bar
