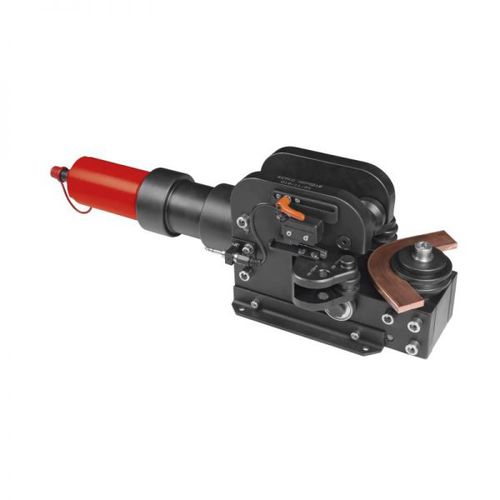

Busbar bender HGP 5010

electro-hydraulic

Bender for lateral bending Al and Cu busbars: • width range 20 ÷ 50 mm • thickness range 5 ÷ 10 mm • bending angle range up to 90° Special features: • equipped with bending insert • equipped with set of rollers (two supporting rollers, stamp with punch clamp) for busbars of thickness 5 and 10 mm • on request rollers for Al busbars • electric sensor (HGD 105 – limit switch) enables repeatable bending only working with hydraulic unit – need to be ordered separately Works with H 800 hydraulic pump and AH 100, AH 500, AH 550, AH 500L hydraulic units. Dimensions: (LxWxH): 700x250x230 mm; Weight: 49 kg; Force: 190 kN Pressure: 630 bar
