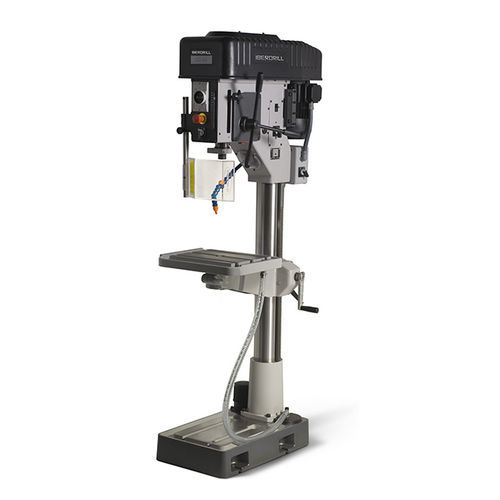

Drill press SZ 34
electricvariable-speedvertical

drill press
drill press
drill press
drill press
Add to favorites
Compare this product

Go to the ERLOGROUP website for more information

Characteristics

Type
column type
Power source
electric
Other characteristics
variable-speed, vertical, with fixed table, electromagnetic self-feed, manual feed
Rotational speed

Min.: 100 rpm
(628.3 rad.min-1)

Max.: 2,000 rpm
(12,566.4 rad.min-1)

Voltage

380 V

Drilling diameter

40 mm
(1.57 in)

Description

Drill of round column manual feed • Feed manual • Transmission v-belt • Column diameter: 125 mm • Distance from spindle to column: 300 mm • Fixed moveable table • Tapping capacity: M 22 • Spindle cone: CM 3 • Drilling depth: 150 mm • Measurements: 2,30 x 0,6 x 1,1 m.
