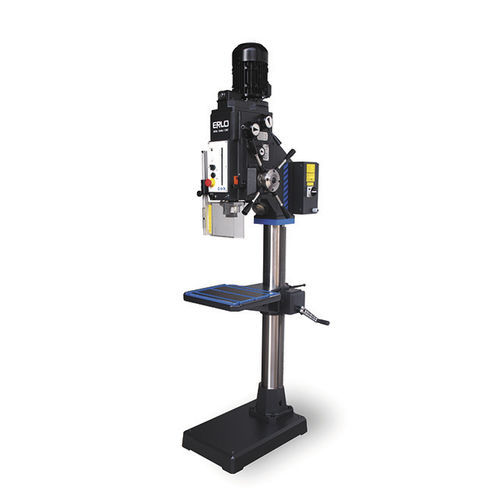

Drill press TSE seriesmagneticelectricvariable-speed
Add to favorites
Compare this product
Characteristics
- Type
- column type, magnetic
- Power source
- electric
- Other characteristics
- variable-speed
- Rotational speed
Min.: 75 rpm
(471.2 rad.min-1)Max.: 2,100 rpm
(13,194.7 rad.min-1)- Drilling diameter
Min.: 32 mm
(1.26 in)Max.: 45 mm
(1.77 in)
Description
Feed electromagnetic automatic
Transmission gears
Column diameter: 125 mm
Distance from spindle to column: 300 mm
Moveable table and fixed bit
Tapping capacity: M 28-30
Feed: 0,10-0,20-0,30
Spindle cone: CM 4
Engine power: 1/1.5 | 1.2/2 HP
Drilling depth: 160 mm
Weight: 300 kg
Measurements: 655x492x2260 mm
Cooling equipment: Opcional
Light equipment
