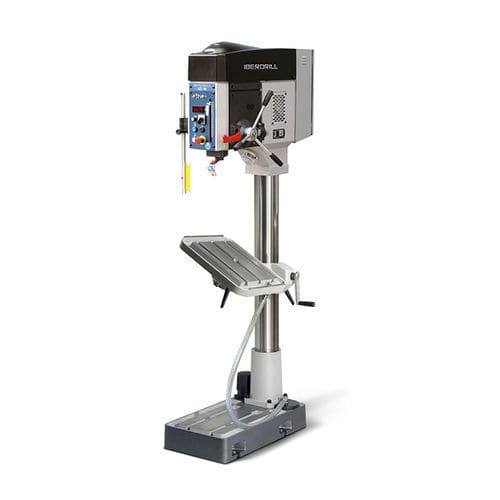

Drill press BZ 40electricpowerfulvariable-speed
Add to favorites
Compare this product
Characteristics
- Type
- column type
- Power source
- electric
- Other characteristics
- powerful, variable-speed, heavy-duty, high-performance, electromagnetic self-feed
- Rotational speed
Min.: 100 rpm
(628.3 rad.min-1)Max.: 2,000 rpm
(12,566.4 rad.min-1)- Voltage
380 V
- Drilling diameter
40 mm
(1.57 in)
Description
BZ 40 series
Drill of round column electromagnetic automatic feed
Feed electromagnetic automatic
Feed: (3) 0.10-0.2-0.3
Transmission electronic variator belt
Column diameter: 150 mm
Distance from spindle to column: 350 mm
Tiltable rotating table
Drilling capacity: ⌀ 40 mm
Tapping capacity: M 33
Spindle cone: CM 4
Engine power: 5.5 HP
Speeds: Continuous: (100-2000) rpm
Drilling depth: 180 mm
Weight: 470 kg
Measurements: 2,30 x 0,6 x 1,1 m.
