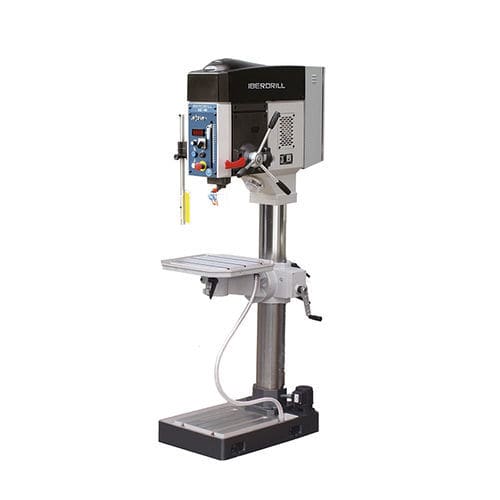

Mechanical self-feed drill AZ 40

column typeelectricvariable-speed

AZ 40 series Drill of round column mechanical automatic feed Feed mechanical automatic Feed: (3) 0.10-0.2-0.3 Transmission electronic variator belt Column diameter: 150 mm Distance from spindle to column: 350 mm Tiltable rotating table Drilling capacity: ⌀ 40 mm Tapping capacity: M 33 Spindle cone: CM 4 Engine power: 5.5 HP Speeds: Continuous: (100-2000) rpm Drilling depth: 180 mm Weight: 460 kg Measurements: 2,30 x 0,6 x 1,1 m.
