Saddle SR1834

Product Details

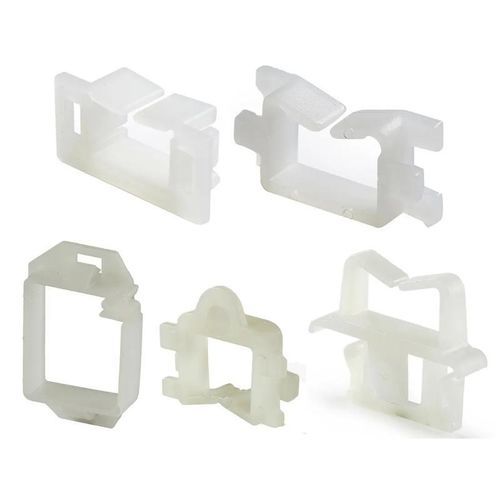

Edge Wire Saddles allow cables and wires to be fixed to the edge of a panel or in a panel cut-out. The top locking entry system ensures cables are retained and clear of sensitive components. The cables can be easily removed when required. The wire saddle can be easily fitted and removed with finger-tip pressure. The material that these wire saddles is made from provides good temperature stability, as well as strength and mechanical resistance.

• Material: Polyamide 6/6 (PA or Nylon 6/6)
• Colours: Black, Grey and Natural
• UL94 V0 and UL94 V2 flame rated options
• Temperature Range: -40C up to 85C

Available Variants (Selection)

• Overall Width (Metric): 11.3 mm, 16.2 mm, 19.8 mm, 20.0 mm, 21.6 mm, 26.8 mm, 28.0 mm, 28.8 mm, 30.4 mm, 31.0 mm
• Overall Height (Metric): 6.1 mm, 10.0 mm, 10.6 mm, 11.2 mm, 12.1 mm, 16.3 mm, 19.0 mm, 23.2 mm, 24.9 mm, 33.3 mm
• Overall Width (Imperial): 0.445 in, 0.638 in, 0.78 in, 0.787 in, 0.85 in, 1.055 in, 1.102 in, 1.134 in, 1.197 in, 1.22 in
• Overall Height (Imperial): 0.24 in, 0.394 in, 0.417 in, 0.441 in, 0.476 in, 0.642 in, 0.748 in, 0.913 in, 0.98 in, 1.311 in

Example Attributes (per SKU)

• Colour: Natural, Grey, Black
• Fitting Style: Edge, Edge Holding
• Saddle Type: Rectangular (for some variants)
• Depth: 3.6 mm, 4.6 mm, 4.8 mm, etc.
• Inside Height: 5.0 mm, 6.5 mm, 7.4 mm, 15.0 mm, etc.
• Maximum Panel Thickness: 1.2 mm, 1.6 mm, 2.0 mm, etc.
• Minimum Panel Thickness: 0.8 mm (for some variants)

Caractéristiques / Spécifications techniques

• Material: Polyamide 6/6 (Nylon 6/6)
• Colours: Black, Grey, Natural
• Flame rating: UL94 V0 and UL94 V2 options
• Temperature Range: -40°C to 85°C
• Mounting: Edge of panel or panel cut-out
• Locking: Top locking entry system
• Removability: Tool-free, finger-tip pressure
• Mechanical resistance: High
• Temperature stability: Good
