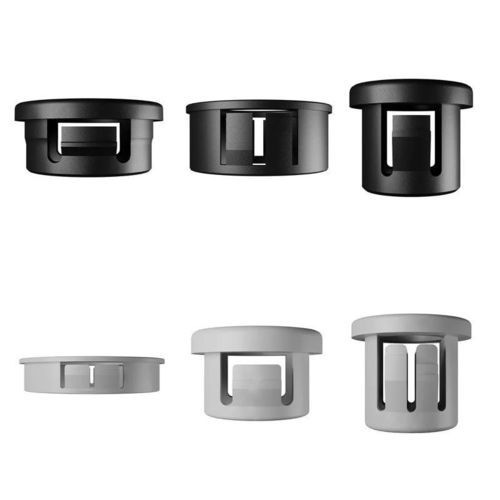

Protection bushing SR1706

multiplenylonsheet metal

Product Details
Closed Bushings are designed for the protection of wires, cables and tubing from the sharp edges of drilled and pulled holes in sheet metal. The economical but durable material creates a smooth opening. Tough and heat resilient options are included in our range. The closed bushing design features multiple locks that allow the bushing to positively snap into common panel thicknesses - making installation easy and effortless. Fingertip pressure installation means no tools are required. Caters to a large selection of sizes with various inside diameter openings.

• Materials: Nylon 6/6 and Heat Stabilised Nylon 6/6
• Colours: Black and White
• UL94 V2 Flame Rated

Characteristics / Technical Specifications

• Product type: Snap-fit Bushings
• Material: Nylon 6/6, Heat Stabilized Nylon 6/6
• Color options: Black, White
• Flame rating: UL94 V2
• Application: Protection of wires, cables, tubing from sharp edges in sheet metal
• Installation: Fingertip pressure, no tools required
• Design: Closed bushing with multiple locks for snap-fit into panel thicknesses
• Available sizes: Various inside diameter openings
