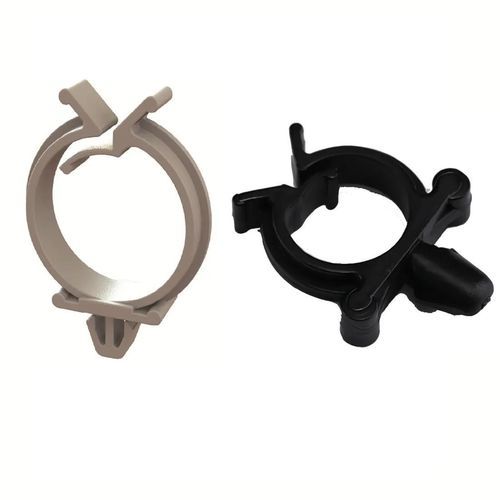

Polyamide cable clamp SR2081

nylonround

Description
Rounded push-in cable clamps designed to retain and route wires and cables without a locking mechanism. The rounded profile accommodates a range of cable diameters and facilitates cable insertion.

Key features and benefits

• Mounting: Push-In for quick, tool-free installation.
• Rounded profile: secures and guides cables while allowing easy wire movement.
• Non-locking: no locking element required.
• Material: good thermal stability and mechanical strength (PA 6/6).

Variants (sample SKUs)

• 10168912 (RWS-16-01BK) — Color: Black — Price: €0.1721 - €0.1788 — Availability: 8918 in stock — Minimum panel thickness: 1.5 mm — Operating temperature range: -40 °C to 85 °C.
• 10168875 (RWS-10-01) — Color: Natural — Price: €0.2447 — Availability: 4562 in stock — Minimum panel thickness: 0.8 mm — Operating temperature range: -40 °C to 110 °C (variant).
• 10168899 (RWS-10-19) — Color: Natural — Price: €0.4074 — Availability: lead time on request — Minimum panel thickness: 0.8 mm.
• 10168905 (RWS-16-01) — Color: Natural — Price: €0.1895 — Availability: lead time on request — Minimum panel thickness: 1.5 mm.
• 10168882 (RWS-10-01BK) — Color: Black — Price: €0.2387 — Availability: lead time on request — Minimum panel thickness: 0.8 mm.
• 10168929 (RWS-16-19) — Color: Natural — Price: €0.2836 — Availability: lead time on request — Minimum panel thickness: 1.5 mm.

Technical specifications

• Material: polyamide 6/6 (PA / Nylon 6/6).
• Available colors: Black and Natural.
• Flame-retardant options: UL94 V0 and UL94 V2 (depending on variant).
• Operating temperature range (typical): -40 °C to 85 °C (some variants up to 110 °C).
• Mounting: Push-In.
• Type: rounded, non-locking cable clamp.
• Series: SR2081.
• References / variants: multiple SKUs (e.g., RWS-16-01BK, RWS-10-01, RWS-10-19, RWS-16-01, RWS-10-01BK, RWS-16-19) with differences in color, minimum panel thickness and availability.
